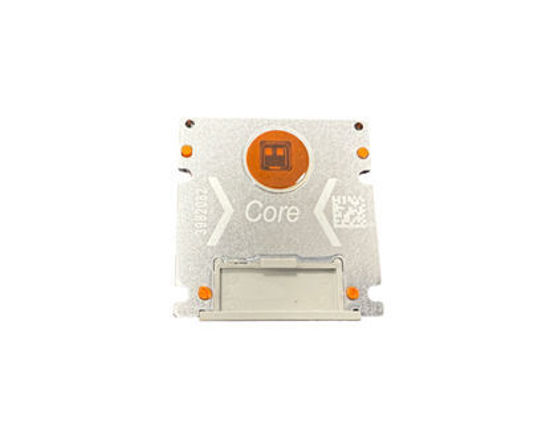

Xaar Irix Core 40W Printhead - XP12800072

The Xaar Irix Core 40W printhead with purple insulator is suitable for a wide range of oil, solvent and water based ink systems. This printhead serves as a direct replacement for the discontinued Xaar XP12800007 and XP12800009 heads, and can be used instead of can be used instead of XP12800074, offering identical performance, quality and printer compatibility. No firmware changes are required in the printer software either. The ink connections on the Xaar 128 and Xaar Irix are 3.1 mm in diameter, therefore the recommendation for the tubing is for 3mm ID tubing. The exact choice of tubing would depend upon the inks you are using.

Product specification:

• Active nozzles: 128
• Nozzle density (NPI): 185
• Print swathe (mm): 17
• Dimensions (mm): 37.2 x 11.3 x 40.8
• Mass (g): 15.5
• Colour of insulator: Light grey
• Drop size (pL): 40
• Drop velocity (m/s): 6
• Max frequency (kHz): 8.3
• Linear speed (m/s @ 180 DPI): 1.17
• Print distance (mm): <5
• Max angular deviation (degrees): 1.0
• Drop velocity variation 3σ (m/s): +/- 0.50
• Country of origin : United Kingdom
