Package includes: 1 x CNC Notching Notcher Machine for Metal Channel Letter, Single Side Notch 1 x Automatic Flanging Machine Flanger for Metal Channel Letter Making 1 x Steel and Stainless Steel Coil Strip Rounded Corner Bending Tools
Remark: The computer is not included, please prepare it by yourself. The windows system should be win XP or win7-32bit and have PCI solt.
Here is a list of items included in this package:

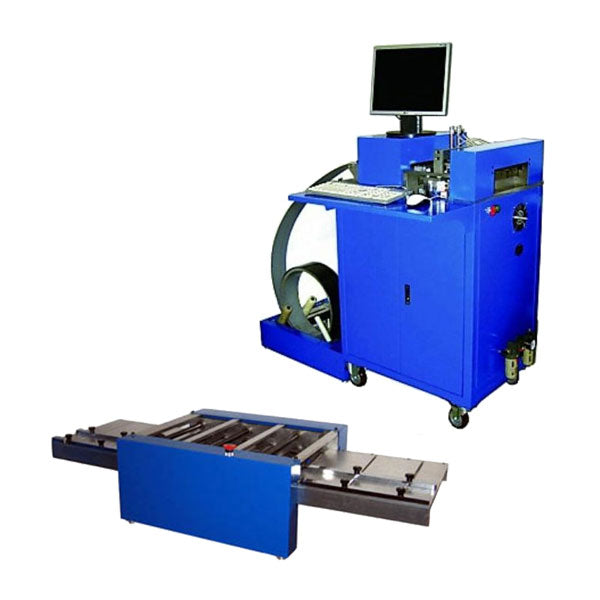

CNC Notching Notcher Machine for Metal Channel Letter, Single Side Notch 1.This Metal Channel Letter Making CNC Notcher is Single Side Notch, its' Notch angle: 30° and 105°, Notch depth: 4mm-16mm. 2.This CNC Notcher is especially used for channel letter notching. Input the design or letter in DXF into the machine, CNC Notcher will fully automate notching accurately. Material handling capabilities: Width: 60mm~180mm Aluminum Coil Thickness: 0.4mm~1.2mm Specification: Notch angle: 30°and 105° Notch depth: 4mm-16mm Notch sides: One side Voltage: AC110V/220V Frequency: 50/60HZ Air pressure: 0.8Mpa Air flux: 0.1 m3/min Physical layout: 2200(L)x1600(W)x800(H)mm Net Weight: 200kg Packing Size: 1030mm x 830mm x 1480mm Gross Weight: 287kg
Automatic Flanging Machine Flanger for Metal Channel Letter Making This cnc automatic flanger eliminates any restriction on channel letter return lengths imposed by brake size. Returns can be flanged as a continuous part of your channel letter production, minimizing labor and manufacturing costs. Features: Easier set up; Easy use; Smaller Footprint conserves space; Used on a bench top or with stand; No special power requirements. Uses standard household power. Specifications: Material width: 60mm~180mm Aluminum Coil Thickness: 0.4mm~1.2mm Voltage: AC110V/220V Frequency: 50/60HZ Air pressure: 0.8Mpa Air flux: 0.1 m3/min Physical layout: 1200(L) x 440(W) x 310(H) mm Weight: 52kg Packing Size: 1340mm x 580mm x 470mm Gross Weight: 95kg
Description: This metal coil strip round corner bending tool can bend iron 1.0 mm, aluminum: 1.2 mm, stainless steel: 0.8mm, effective flanging height is 150mm. Max Height: 150mm Three rolls with different diameters The rolls with low friction material, easier to use Can be surface or flush mounting with the bottom Packing Size: 9.0" x 5.2" x 6.5"(230 x 132 x 165mm) Gross Weight: 3200g/set
