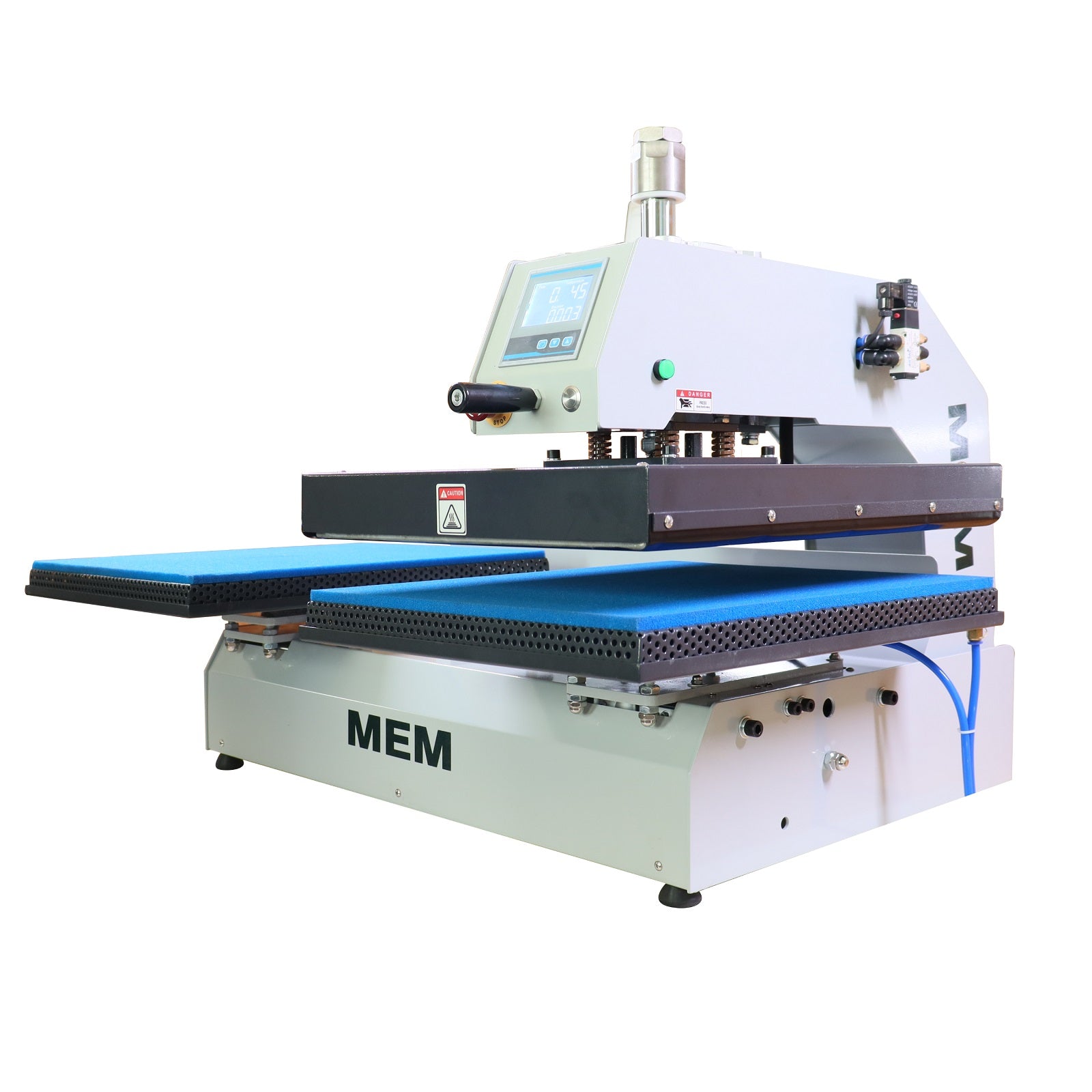

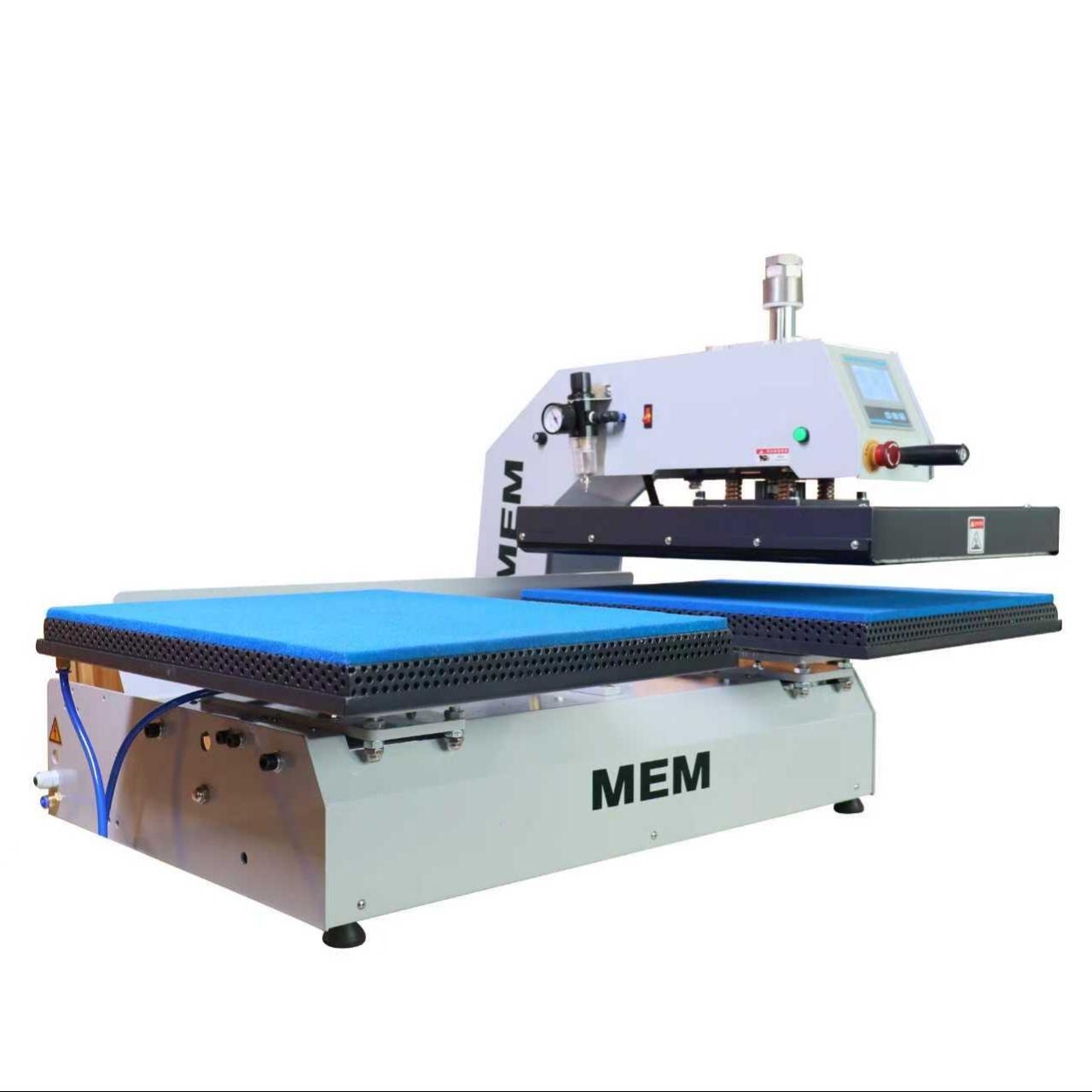

MEM 16"x20" Dual Station Pneumatic Heat Press - DTG/DTF Curing System with Interchangeable Platens

Description

Upgrade your heat transfer workflow with our 16x20 Dual Station Pneumatic Heat Press, the ultimate workhorse for DTG and DTF printing and curing! It's built with a heavy-duty, industrial-grade rugged frame and top-of-the-line electrical components to provide unparalleled durability for demanding production, and we offer 2 additional platens specifically designed for DTF hot pressing to meet a wide range of heat transfer needs and versatility.

Features:

• Dedicated DTG Curing Design: Equipped with standard DTG curing platens; optional aluminum heat press platens available for expanded use.
• Dual Operation Modes: Supports semi-automatic or manual control to match diverse workflow need.
• Pneumatic Dual-Station Setup: Ideal for medium and large batch heat transfer production

• Precision Pressure Balance: Integrated pressure balancing system for both heat plate and bottom plate ensures uniform pressing

• Adjustable Air Pressure: Equipped with an air reducing valve plus water separator for smooth, stable pressure regulation

• Safe Two-Hand Operation: Prevents accidental activation and ensures operator safety

• CE & RoHS Certified: Meets strict international safety and environmental standards

• Bonus Versatility Kit: Comes with 2 extra aluminum and silicone plates to boost heat transfer flexibility and practicality

Specifications:

• Voltage and power :220V, 13A, 2700W or 110V, 16A, 1800W

• Check voltage at back side of the head

• Time Range: 0-999sec.

• Max. Temp. 500°F /260°C

• Heat plate size: 16"x 20"(40cm x 50cm)

• Dimensions(LxWxH): 42" x 28" x 23" (108cm x 73cm x 59cm)

• Shipping Dimensions(LxWxH): 49"x 31" x 28"(123cm x 77cm x 69 cm)

• Shipping Weight: 352lbs(160kg)

• Max. press thickness: 40mm (1.6")
