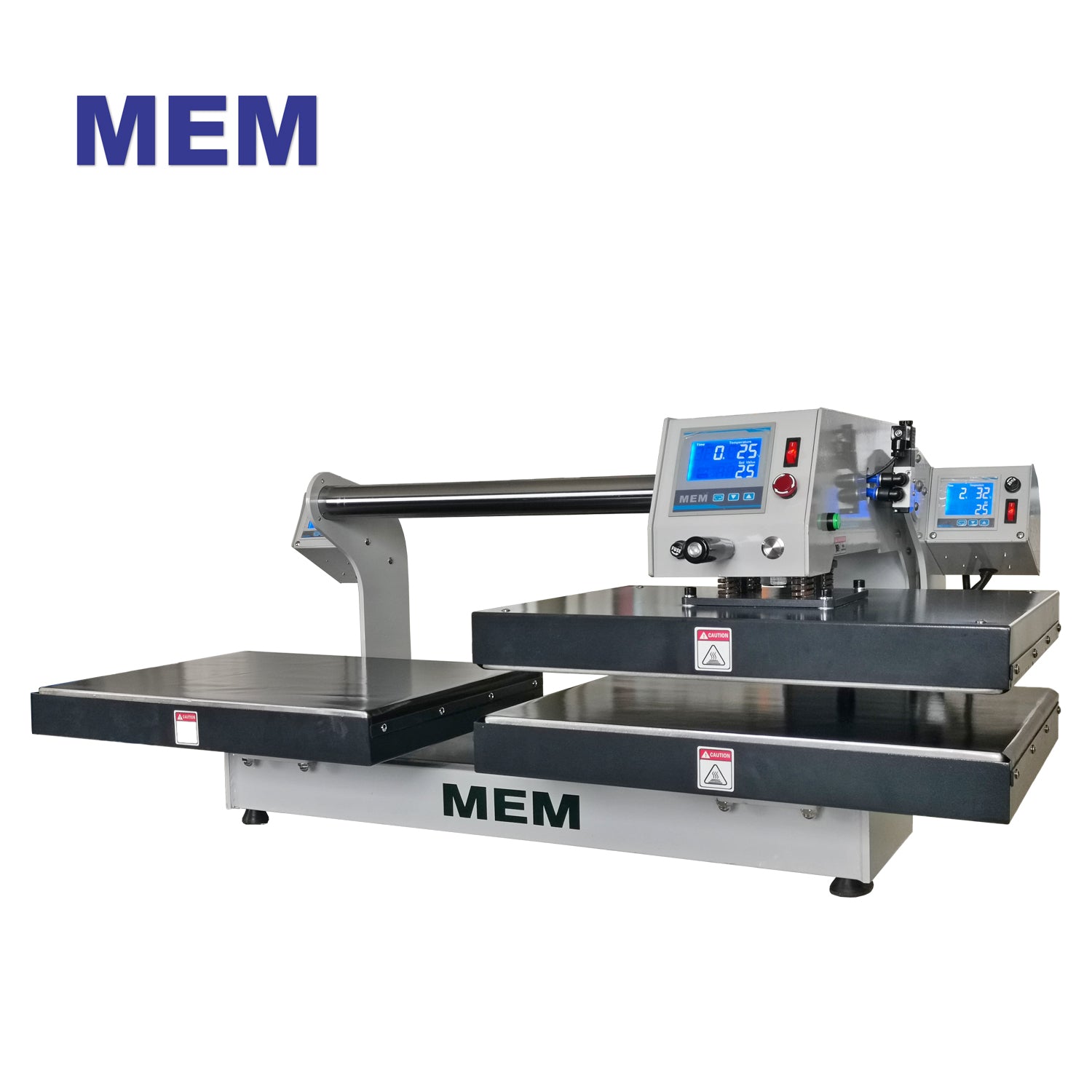

MEM 16" x 20" Semi-Automatic Pneumatic Double Station Top and Bottom Heat Press Machine with Laser Positioning System

Description

The design of the MEM double station presses integrates a heavy-duty solid industrial-grade pressing framework with high-quality electrical components, complemented by dual top-and-bottom heating functionality ,a key enhancement tailored for modern heat transfer demands. This combination delivers the optimal features and equipment operators need to tackle today’s diverse heat transfer applications with exceptional performance. Equipped with dual top-and-bottom heating, the MEM TQ-4050 double station heat press enables professional execution of all common heat transfer processes (flock, flex, sublimation, transfer, inkjet-flex, etc.) with maximum productivity.

Features:

• Pneumatic double station transfer press for medium and large batches.

• Dual Top and Bottom Heat Plates for consistent transfers

• Pressure balancing system on heat plate and bottom plate.

• Operates in semi-automatic or manual modes.

• Adjustable air pressure by air reducing valve with water separator.

• Two-hand operation for safety use.

• CE certificated and RoHS certificated.

• Powered by an air compressor (not included)

• Includes teflon sheet on the heat palte.

• Table and bottom stand included.

• Laser Positioning System included.

• Lifetime factory on-line service.

Specifications:

• Voltage and power: 220V/8100W/37A or 110V /5400W/49A

• Check voltage at back side of the head

• Time Range: 0-999sec.

• Max. Temp. 500°F /260°C

• Heat plate size: 16"x 20"(40cm x 50cm)

• Dimensions(LxWxH): 41"x27"x46"(105cm x 69cm x 117cm)
• Shipping Dimensions(LxWxH): 49"x31"x25"(123cm x 77cm x 65 cm)
• Shipping Weight: 347.6lbs(158kg)
