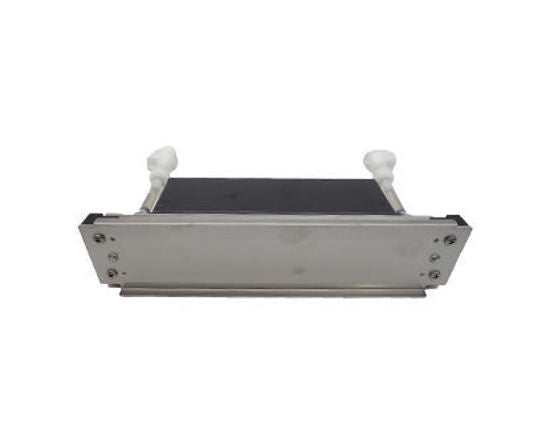

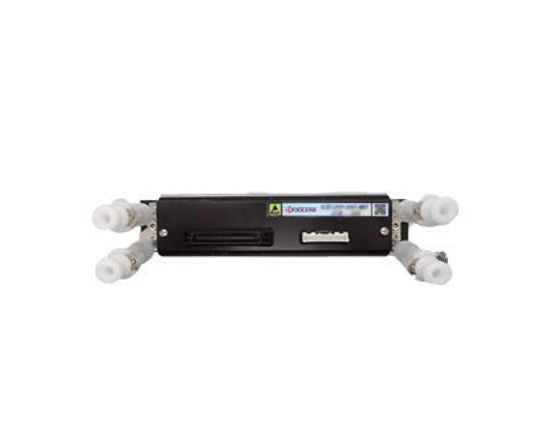

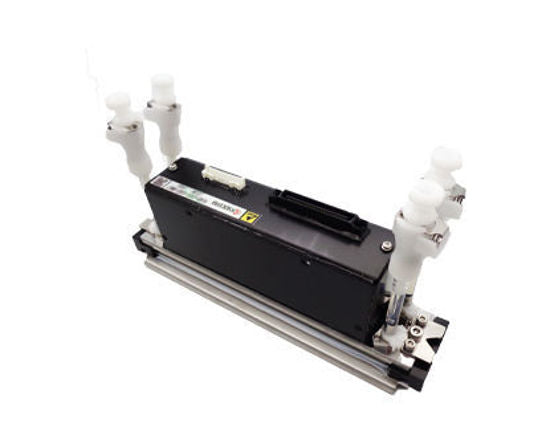

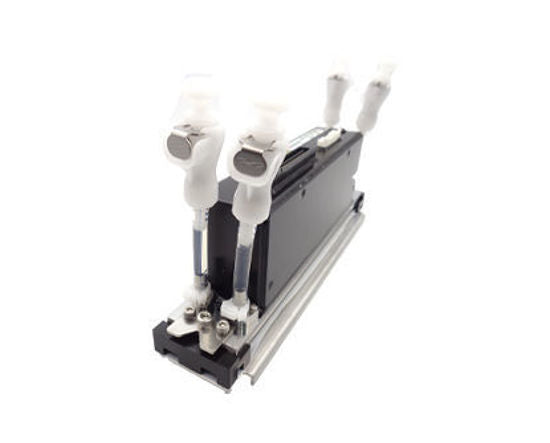

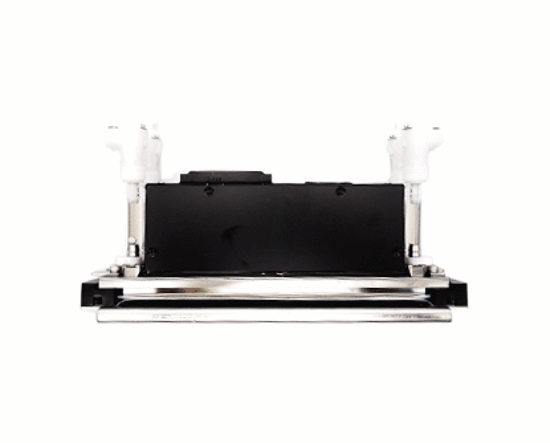

Kyocera Inkjet Printhead KJ4B-0300 - For MS Printers

Description

This Kyocera KJ4B-0300 is designed for high speed printing with water-based inks, in 600 dpiwith a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 75 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.The Kyocera KJ4B-QA is equipped with internal filters to preventparticles to reach the nozzle plate and an internal heater that adjusts the temperature. We recommend to change the head cables when installing a new printhead.

The Kyocera KJ4B-0300 printhead is available in 3 different models:

• Standard for all printers other than MS and EFI Reggiani
• MS printers including the head cable
• EFI Reggiani printers including the head cable

Please select the printhead model carefully as they are not interchangeable.

Printer compatibility

• Printer compatibility

• FabriVu 340


• MS Italy JP4

• MS Italy JP4 Eco

• MS Italy JP5

• MS Italy JP5 Evo

• MS Italy JP6

• MS Italy JP7


• Printerevolution T1800

• Printerevolution T2600

• Printerevolution T3200
