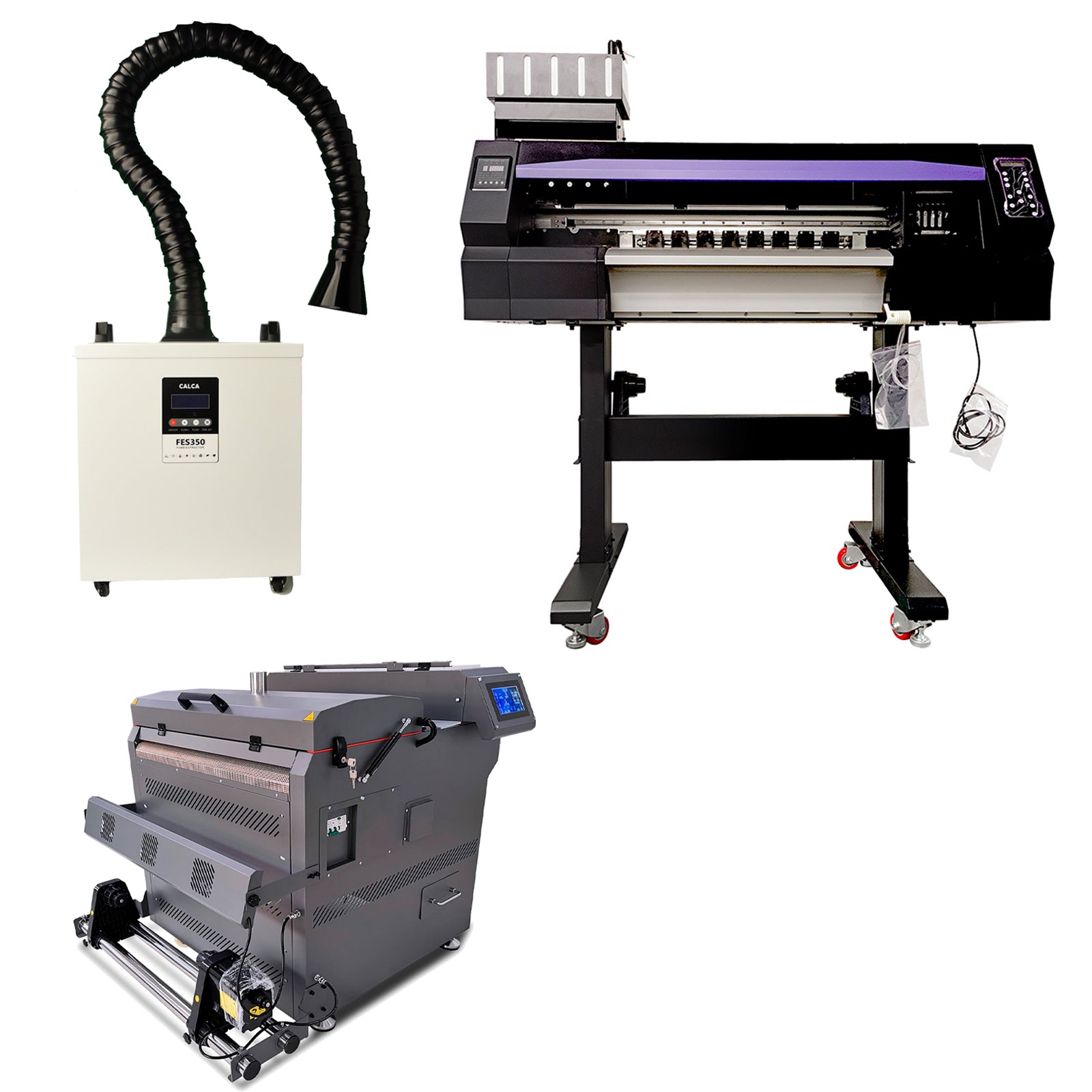

CALCA Prime 24inch DTF Printer & Shaker Bundle with Fume Extractor Filter

Description

CALCA 24in (600mm) Entry Level Automatic TPU Adhesive Powder Shaker and Dryer Machine
With a touch screen display controller, simple to use.
Infrared drying and heating improves and protects color reproduction.
With a mesh belt platform (non-transportable, without suction function) secures the printing material to avoid bulging, run-offs, adhesion and media waste.
CALCA DTF powder shaker and dryer unit can handle up to 24in wide DTF film.
With the advancement in DTF technology, there is no denying that DTF is taking the printing industry by storm. It is quickly becoming one of the most popular technologies for textile printing compared to traditional printing methods.
This all in one DTF powder shaker unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.

Applicable Medium: Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Diving Suit, PVC, EVA, etc.

Specifications:

CALCA Brand: USA registered
Maximum Shake Powder Width: 600mm (23.6inches)
Functions: Shake powder control, dusting control, PID setting of curing temperature
Heating Element: Quartz infrared heat drying tube
Rewinding Function: Automatic induction rewinding
Heating and Drying Mode: Front guide plate heating, upper drying curing
Cooling Mode: 3 fan air cooling (Single row)
Machine Size: 35.4in x 33.1in x 42.6in (900mm x 840mm x 1082mm)
Machine Weight: 280lbs (140kg)
Packaging Size: 47.2in x 40.9in x 44.9in (1200mm x 1040mm x 1140mm)
Gross Weight: 396lbs (180kg)

Requirements:
Working Power Supply: AC110V, 50hz / 60hz, 1 phase.
Current: 28A, 3000W
With CALCA DTF film, powder and Inks, you can easily and quickly create custom t-shirts and apparel.
Powder spreading structure: The motor drives the brush to rotate to brush the hot melt powder out of the powder box.
Powder shaking device: the motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.

Remarks:
CALCA DTF powder shakers do not have automatic powder recycling function, in order to avoid hot melt powder moisture.

Features:

· With a warming inlet platform, automatic powder dispenser, paddle to remove excess powder, 4 bulb tunnel dryer and roll up at the end.
· This all in one unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
· Infrared drying and heating improves and protects color reproduction.
· Customized powder recycling drawer, increases effectiveness.
· Shake powder control, dusting control, PID setting of curing temperature.
· Automatic powder feeding, evenly spreading powder.

Prime 24inch (600mm) DTF Printer (Direct to Film Printer) with Dual Epson I3200-A1 Printheads Specifications:
