Wide Image Solutions

6060 UV Flatbed Printer and 12Inch UVDTF Desktop Direct to Substrate Roll Printer Combo, All-in-One Hybrid Printer for AB Film, Acrylic, Metal, Glass, Wood, Cell Phone Case

$8,188.70
$8,188.70
Shipping calculated at checkout.

    Specifications

    Flatbed Print Size 23.6-23.6in(60–60 cm)
    Roll Print Size 12in(30cm) width
    Printhead 3*Epson XP600
    Print Speed 6 m²/h (XP600, 6 pass)
    Print Height 0-9in(0–23 cm)
    UV Light Power 100W
    X-axis Drive Silent linear guide rail, low noise
    Y-axis Drive Dual guide screw drive for improved printing accuracy
    Ink Consumption 1.5 ml per square meter
    Ink Type UV ink / textile ink
    Printing Colors CMYK + White + Varnish
    Curing Method Water-cooled and air-cooled UV lamp
    Platform Material Steel vacuum adsorption platform
    Outer Packing Fumigated export wooden case
    Power Requirement AC 110V/220V ±10%, 50/60Hz, 2000W
    Software Ruii Color / Maintop
    Number of Printheads 2–3
    Platform Adjustment Automatic adjustment with touchscreen control
    Printing Direction Uni-directional / Bi-directional printing
    Ink Supply Mode 6–8 color system with white ink circulation and stirring to prevent sedimentation
    Ink Supply System Automatic ink feeding, spraying, and cleaning system
    Cylinder Function Supports cylindrical printing (optional)
    Supported File Formats TIF, PDF, TIFF, JPG, CAD, CDR

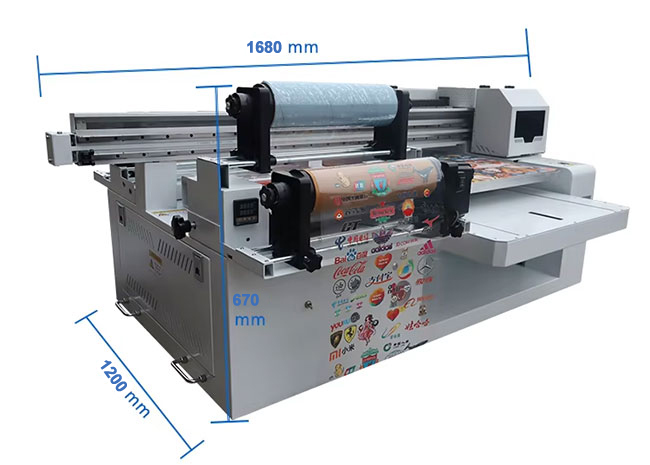

    Machine Size 66*47*26in(1680*1200*670mm)
    Packing Size 67*57*33in(1700*1450*850mm)
    Net Weight / Gross Weight 352lbs/396lbs(160kg / 180kg)
