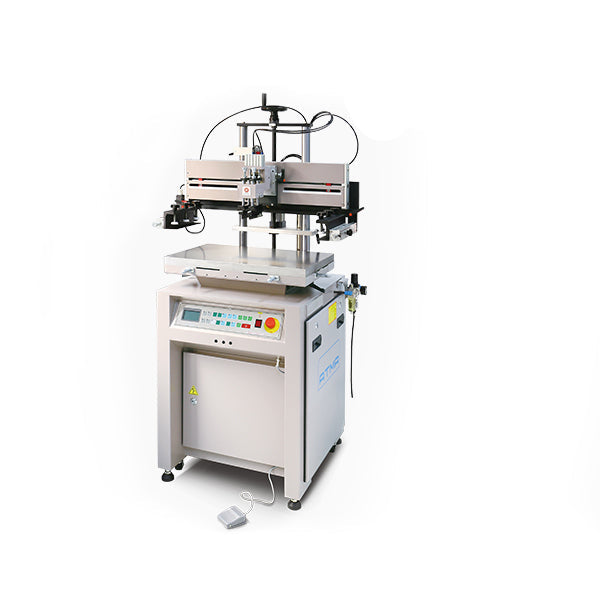

ATMA 220V 280W Pneumatic Mini Flat Screen Printer Screen Printing Press

Description

Suitable for printing various products with small size, light weight and flexibility, quick exchange substrate.
Initially invented pneumatic type flat screen printer, suitable for printing various industrial products like Nameplate and Cards, all kind of flat sheet / plate / panel of material Acrylic, Plastic, Plastic, Metal, etc.
Corresponding to diverse production efficiency, versatile feature like three-point screen micro-adjustment for easy registration, table with vacuum function, CPU control, etcwhich is the best choice of small size screen printer.

Features:
Screen vertical up down to prevent ink flow to lateral side.
Three-point screen micro adjustment, table can be adjusted in direction front / back / right / leftward to facilitate multi-layer printing.
Optimal closed chamber buffer device to eliminate rapidly vibration phenomenon upon collision.
Safety insertion pin facilitates to exchange squeegee / flood coater / screen and cleaning residue ink.
Design of the retractable Print Head carriage ensures centric position for printing.
CPU control, selectable various printing cycle mode corresponding to diverse printing requirement.
E-stop pressing plate is used to protect operator safety and decrease defective rate.

Specification:
Model: TY-500FAT
Substrate Thickness: 0.1〜80mm
Max Productivity: 820 P/H
Max Printing Area: 11.8"x18"/300 x 460 mm
Max Frame O/D Size:17.7 x 25.6 /450 x 650 mm
Table Size:15.7"x23.6"/400 x 600 mm
Vacuum Hole Diameter: ϕ 0.06"/ϕ 1.5 mm
Power: 220V/0.28KW(single phase)
Air Exhaustion: 165.3L/min
Machine Weight: 418lbs /190kg
Machine Dimension:32.3"x 24.8"x 63.4" /820 x 630 x 1610mm

Package:
Packing size:40" x 36" x 74.8"/1010 x 920 x 1900 mm
Gross weight:607 lbs /276 kg
