4 Color 2 Station Silk Screen Printing Press Screen Printing Full Kit Equipment (SPK-TJ-KIT-002)

4-2 Screen Printing Package

Screen printing is arguably most versatile in printing, almost everything can be used as substrate. Our company provides this 4 color 2 station screen printing package with items needed by a small screen printing workshop. As to single machine's detailed description, video, clients can find them in our store.

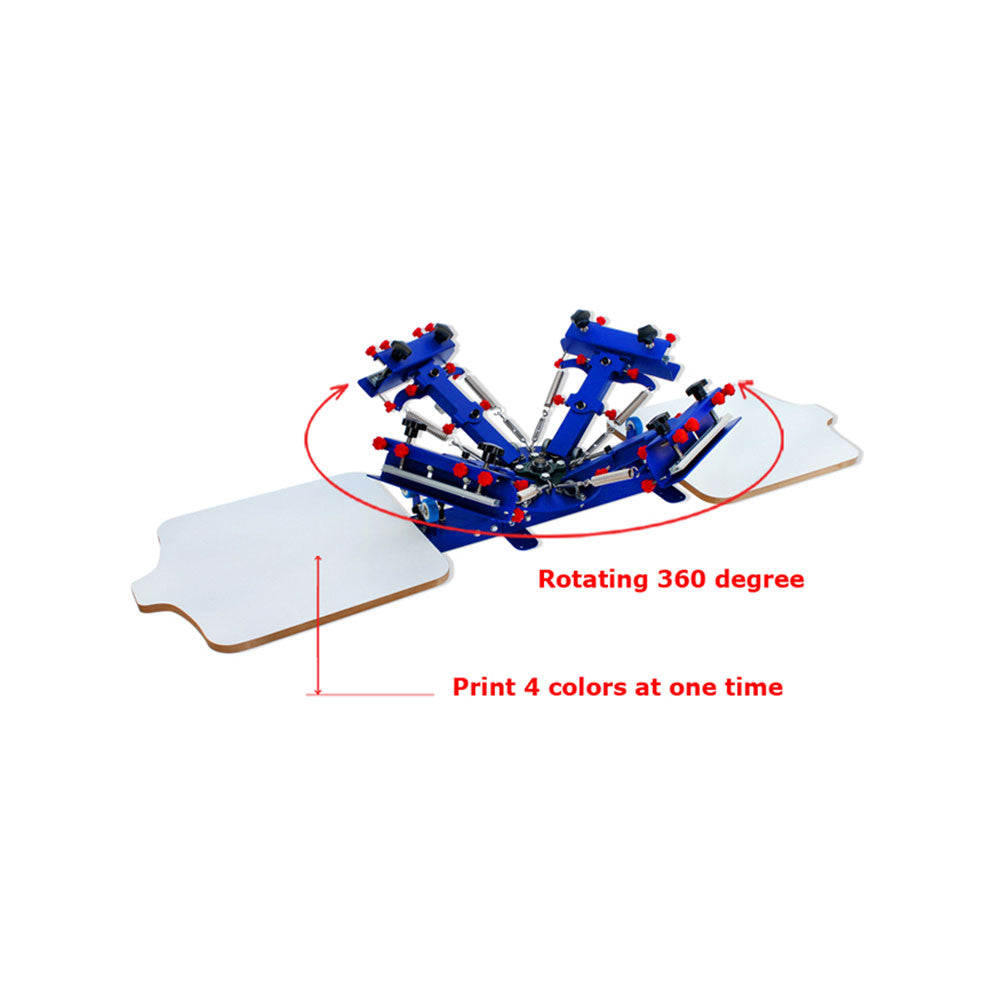

4 Color 2 Station Screen Printing Machine

ASC 4 Color 1/2 Station Single- Rotary Screen Press can simultaneously install four screen plates and the screen layer can rotate independently after installation, which is available for four colors’ overprinting and making progressive proofs of screen printing business.

Application：
It can print onto clothing (especially for T-shir+E3t), woven fabric, metal, paper, copybook, plastic, circuit board, wood, glass, ceramic tile, leather and other plane printing substrates, which is especially suitable for small businesses and individual printing shop.
Table Type and Combinatorial Design Saves Place and Convenient for Transportation. The frame can Rotate Arbitrarily in 360 Degree, plate is fixed can not move.
Screen clamp can be moved up and down, which is suitable for screen frame within 3/4" (2cm).

Parameters：
Machine size: 32*7.9*55" (82*20*140cm)
Platen size: 21.7*17.7" (55*45cm)
Net Weight: 35KG/78lb
Shipping Weight: 42KG/96lb)
Package sizes: 286*50*25cm/34*17*10inch

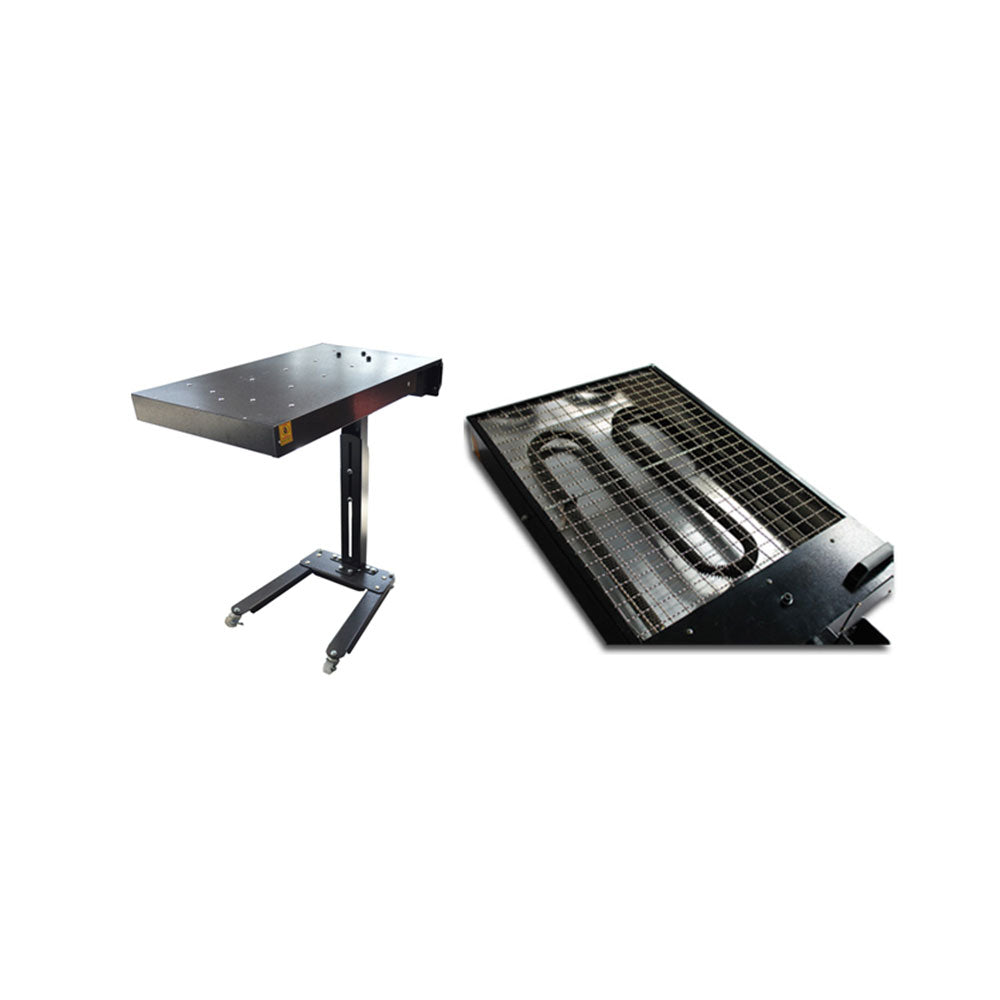

1800W Flash Dryer

Parameters:
Input voltage：110V，220V
Power：1800W
Baking area reaches 18"x24" (45x60cm).
Weight：75Lb (34kg)
Crate Dimension: 34"x20"x14"(86x51x36cm)
With CE Certificate

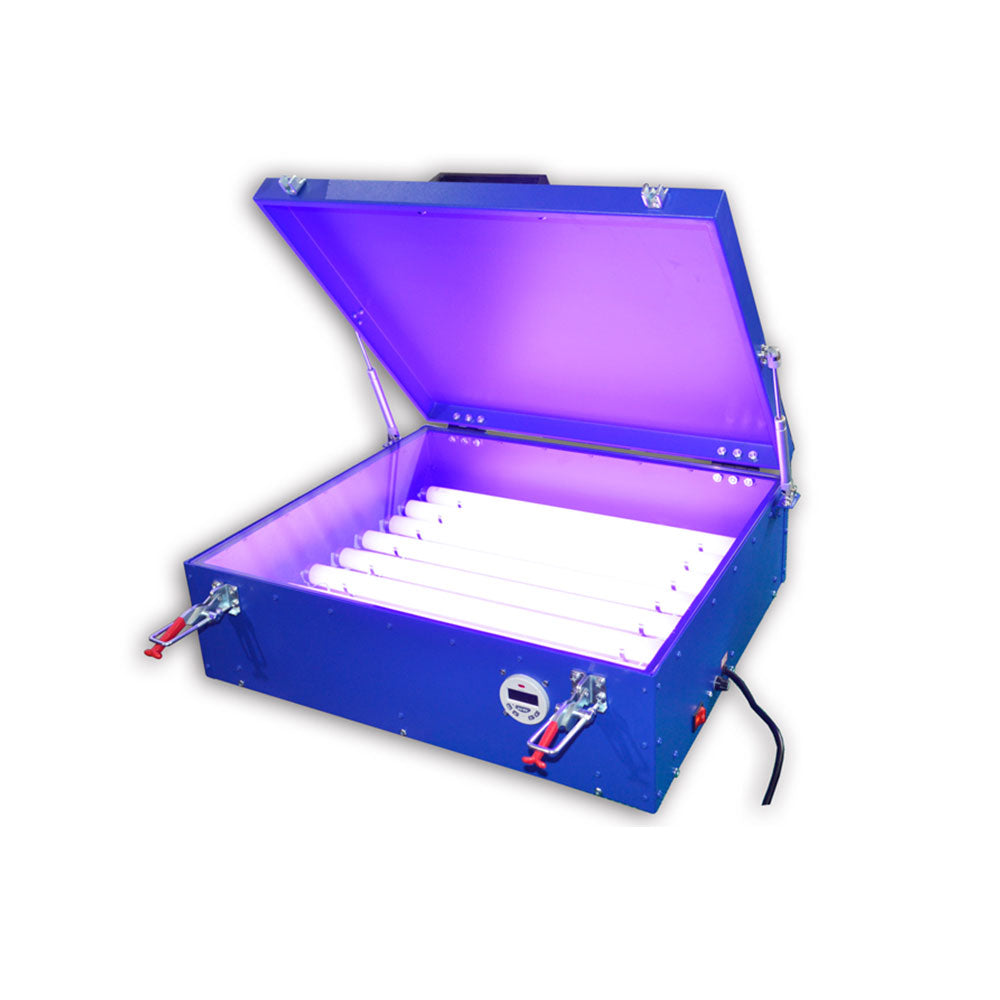

UV Exposure Unit

Specifications:
Voltage: 110V, 220
Exposing area: 21" X 25"
Power of light tubes: 160W
Amount of light tubes: 8
Time range: 0s-999s
Crate Dimensions: 34"x 26.6"x12"(875 x 675 x 310 mm)
Shipping weight: 106 lbs (48 kg)

Materials:

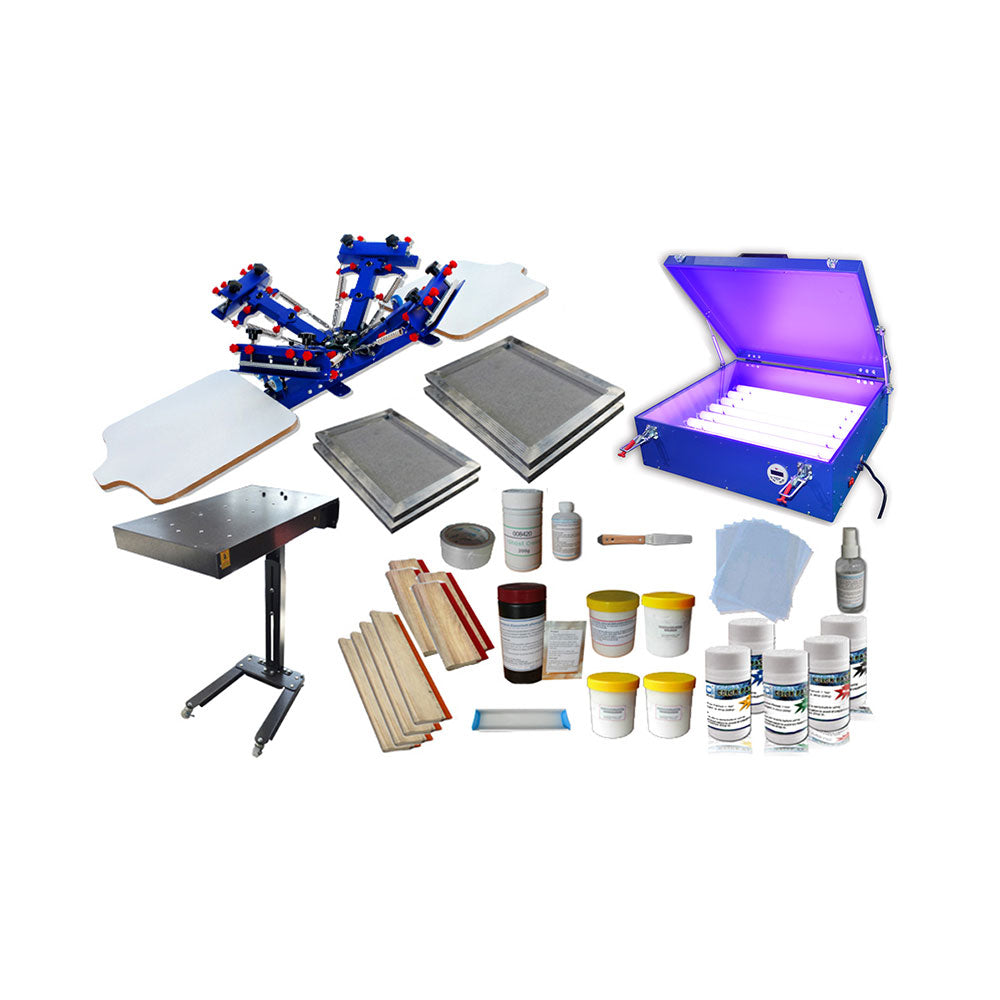

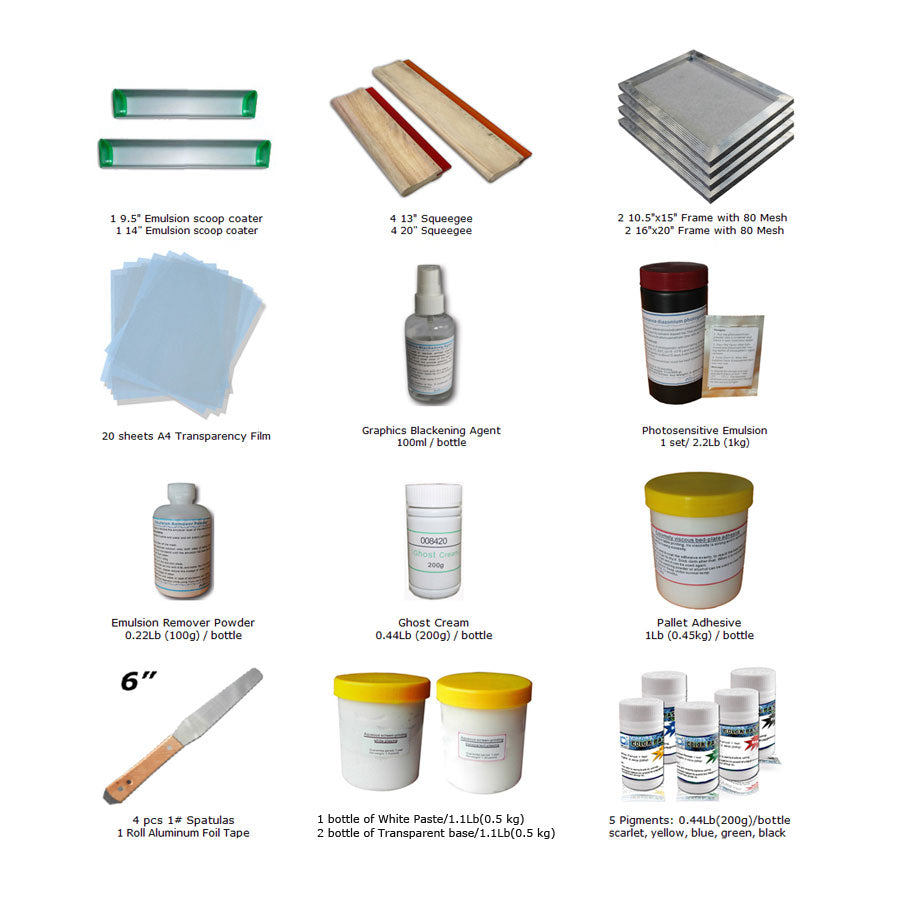

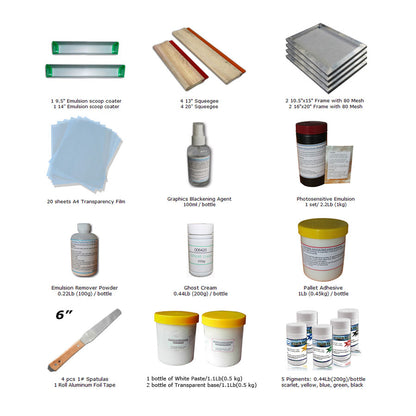

Package included:　
1)1 Four color Two station screen press (006523)
2)1 Flash dryer (006042)
3)1 UV exposure unit (006002)
4)1 9.5"Emulsion Scoop Coater (007002)
5)1 14"Emulsion scoop coater (007001)
6)20 sheets of A4 transparent Film (007003)
7)1 bottle of graphic blackening agent (007006)
8)2 Stretched 10.5"x15" Screen Frame with 80 Mesh (007244)
9)2 Stretched 16"x20" Screen Frame with 80 Mesh (007264)
10)1 Aluminum Foil Tape (008433)
11)1 set of Photographic emulsion (008401)
12)1 bottle of Emulsion Remover Powder (008417)
13)1 bottle of Ghost Cream (008420)
14)4 13"/33cm Squeegees (007347)
15)4 18" Squeegee (007350)
16)4 1#Stainless Steel Spatulas (007024)
17)1 bottle of Pallet adhesive (008450)
18)1 bottle of White Paste (008243)
19)2 bottle of Transparent base (008253)
20)1 bottle of Scarlet Pigment (008050)
21)1 bottle of Yellow Pigment (008051)
22)1 bottle of Blue Pigment (008052)
23)1 bottle of Green Pigment (008053)
24)1 bottle of Black Pigment (008054)

Package:
1#56x87x33cm
2#95x53x27cm
3#87x86x24cm
4#45x55x30cm
Gross weight:138 kg
