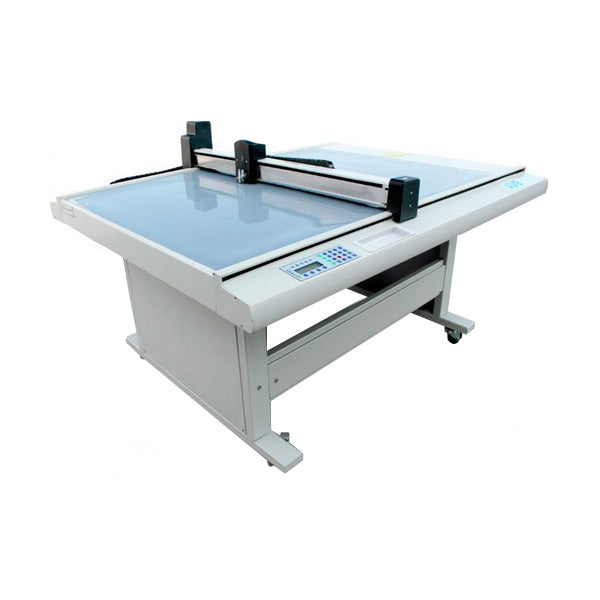

35.4" x 23.6" (900 x 600mm) Aoke GD series Shoe Pattern Cutting Plotter

CS-AOKE-GD0906 seriees high speed cutting machine could meet the requirement for high-level cutting accuracy.It employs

import steel belt for power driving, and work under high precision, high speed, stable capability, convenient to use, compatible with any CAD software. It is greatly welcomed by customers and widely applied for high accuracy cutting or plotting for shoes. It equips pen and special knife to cut and draw many kid of materials such as card paper, craft paper used in the shoe pattern industry. Accroding to the special need, we offer CS-AOKE-GD0906 for customers. CS-AOKE-GD0906 shoes pattern cutting plotter apply vacuum to hold cutting sheet.

No.	Photo	Name	Application
1		Pen	Drawing



Specifications

Model	CS-AOKE-GD0906
Effective cutting area	900 x 600mm
Way of fixing paper way	Vacuum absorbing
Driving material	Import steel belt
Cut materials	Red hard paper, plastic board, white board, kraft paper
Configuration	Special knife， pen
Cutting thickness	0.5-2mm
Cutting precision	≤0.05mm
Cutting way	Drawing by pen, half cutting, whole cutting
Max speed	1000mm/s
Working time and character	Continuous work, operating computer and cutting at the same time, linear high-speed
Transmitting port	International standards: parallel port/RSC232 serial port
Capacity of buffer area	Buffer area of large capacity, it can finish high-speed transmission for data at a time
Instruction set	International standards: HP-GL or DXF form can be selected selected, It is compatible with all kinds of CAD software
Occupy dimension	1335 x 1065 x 1080mm
