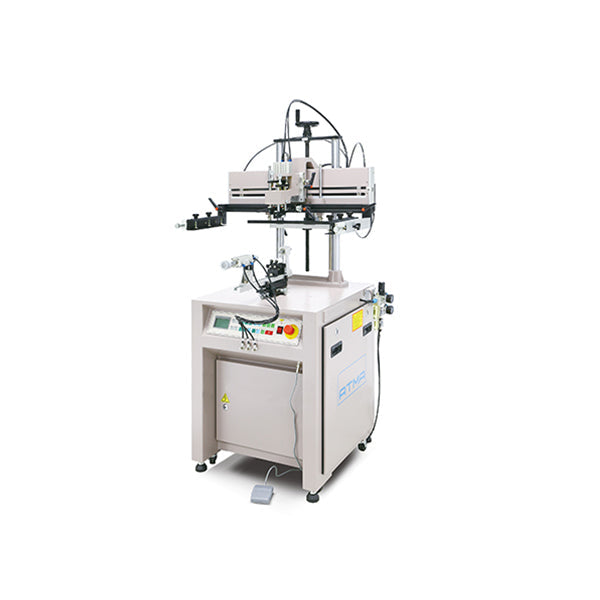

220V 350W ATMA Pneumatic Mini Curve Screen Printer Screen Printing Press(Diameter:ϕ5.7"x7.9" )

Description
Suitable for screen printing cylindrical, conical, oval shaped and curve with small diameter, such as cup, mug, bottle, pipe, tube, can and so on.
Initially invented pneumatic mini curve screen printer, suitable for printing industrial product like cosmetic container, glass or cup / mug, syringe, measurement cup, golf club, etc.
Corresponding to diverse production efficiency, cross base micro-adjustment for easy screen registration, equipped with inflatable thimble, CPU control, selectable various printing cycle mode for smooth operation, which is the best choice of small curve screen printer.

Features:
Screen vertical up down to prevent ink flow into lateral side.
Gear and cog bar are closed synchronously transmission, collocated fixture to attain printing to represent image original size, ensure multi-color printing precise registration.
Inflatable thimble device ensures printing soft bottle and center fulcrum fixation the object for printing.
Safety insertion pin facilitates to change the squeegee, flood coater, screen and ink cleaning.
Fixture : depending on practical printing need, bespoke design the fixture and gear to fit curve object printing.
CPU control, versatile printing cycle mode selection to fulfill various printing requirement.
Equipped with E-stop switch to ensure operator safety and reduce defective rate

Specifications:
Model:TY-500FBT
Screen Up Level:4"/100mm
Max Productivity: 820 P/H
Max Printing Diameter:ϕ5.7"x7.9" /ϕ145x200mm
Max Frame O/D Size: 13.8"x25.6"/350 x 650mm
Frame Micro-adjustment front / backward direction: 0.6"/15mm
Cross Base Micro-adjustment:0.6"/15mm
Power: 220V/0.35KW(single phase)
Machine Weight:418 lbs/190 kg
Machine Dimension: 33.9" x 34.6" x 66.5"/860 x 880 x 1690 mm

Package:
Packing size:40" x 36" x 74.8"/1010 x 920 x 1900 mm
Gross weight:607 lbs /276 kg
