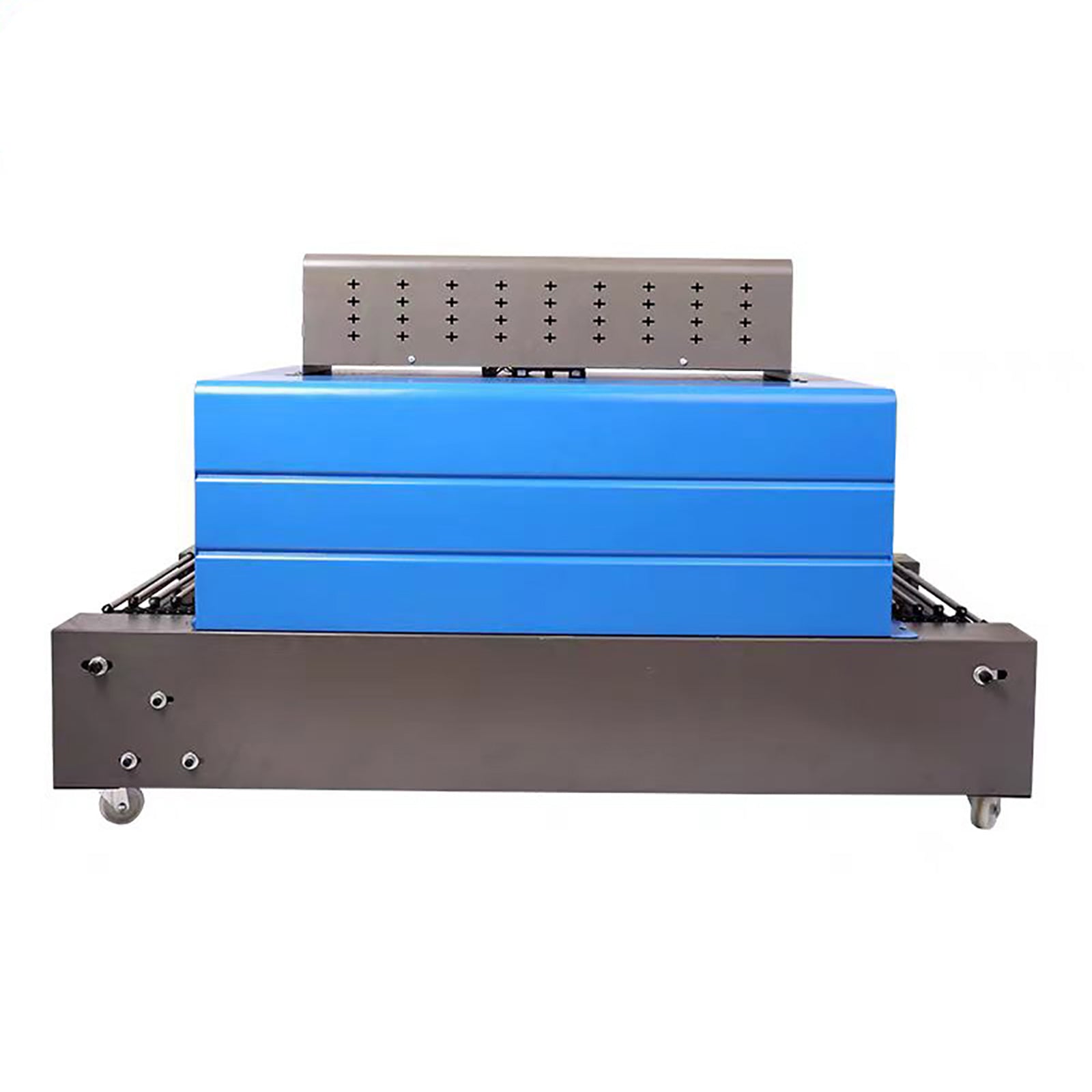

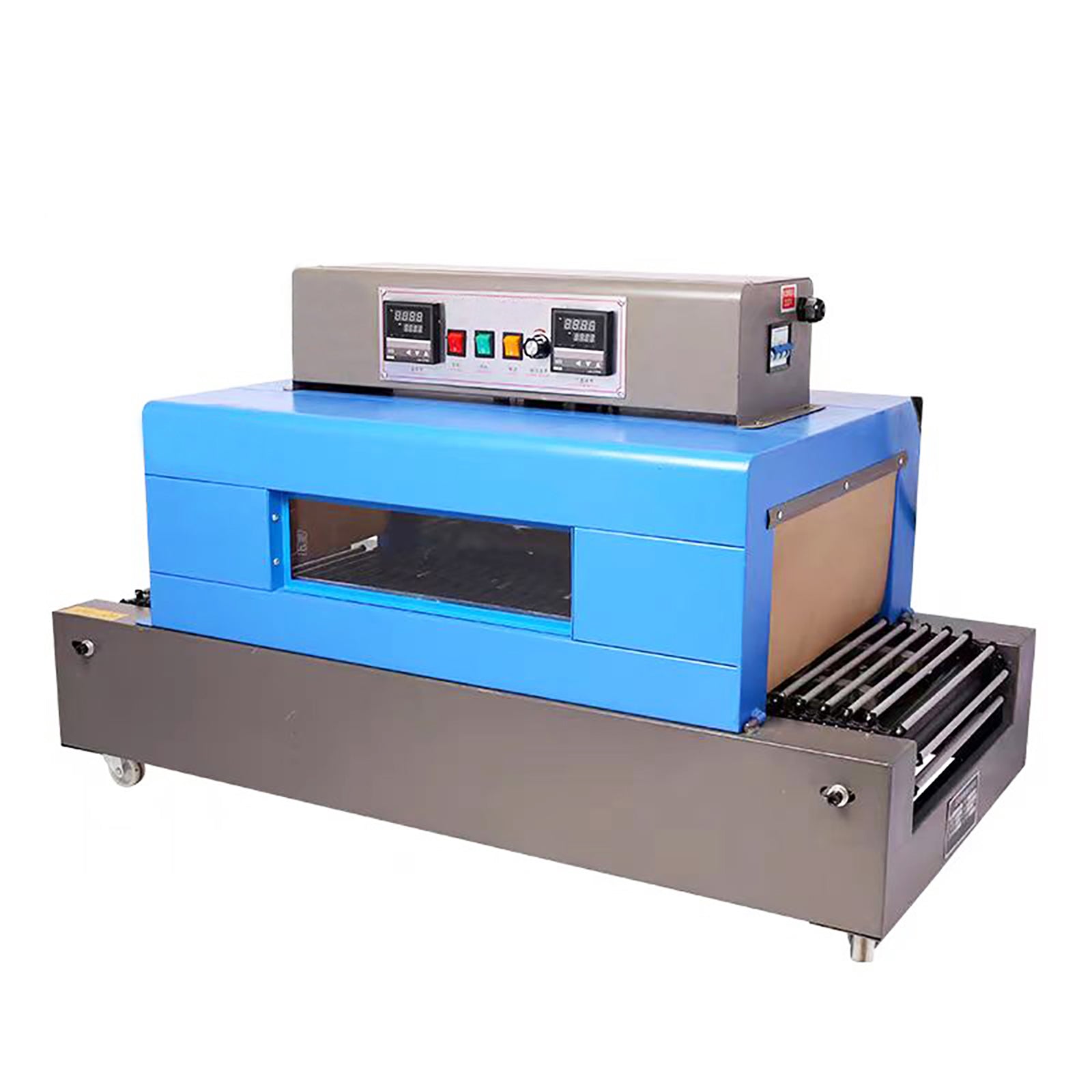

15.7 x 7.9in(40 x 20cm) Thermal Heat Shrink Packaging Machine Tunnels PP/ POF/ PVC for Channel Letter Package
- Regular price
-
$622.70 - Regular price
-
- Sale price
-
$622.70
Couldn't load pickup availability
Features
1. Visible skylight, high temperature resistant and explosion-proof
2. Intelligent temperature control and the use of digital temperature controllers make the temperature in the furnace more stable, the shrinkage effect is better, and power is saved.
3.The entrance has a high-temperature cloth as a shield, making the equipment safer during operation.
4. It can be well sealed, moisture-proof, anti-pollution - shrink film under the control of the device shrinks tightly wraps products or packages, which is suitable for the packaging of regular or irregular items.
5. Safety - Shrink-wrapped packaging provides a cushioning effect that protects the item from external shocks and reduces the likelihood of product
6. A wide range of applications - used for food, beverages, candy, stationery, hardware tools, daily necessities, chemical products and other industries.
Specifications
| Item Code | CS-DBJ-4020 |
| Voltage | 110VAC / 220VAC,1-phase |
| power | 6.6KW |
| Conveyor loading | 22lb(10kg) maximum |
| Conveyor speed | 0-10m/min Adjustable |
| Shrink film | PVC, POF, PP |
| Shrinkage temperature | 0~300℃ |
| Tunnel size | 30.7*15.7*7.9in (780*400*200mm) |
| Machine size | 43.3*22.4*26.4in (1100*570*670mm) |
| Packing size | 45.3*24.4*29.9in (115*62*76cm) |
| Vet weight | 132lbs(60kg) |
| Gross weight | 238lbs(108kg) |
| Shrink film temperature/Time comparison table | |||
| Shrink film | Polyvinyl Chloride | Polypropylene | Polyolefin Shrink Film |
| Abbreviation | PVC | PP | POF |
| Thickness | 0.02-0.06MM | 0.02-0.04MM | 0.03-1.10MM |
| Heating time | 5-10S | 6-12S | 8-16S |
| Shrink chamber temperature | 110-130℃ | 130-170℃ | 130-170℃ |
