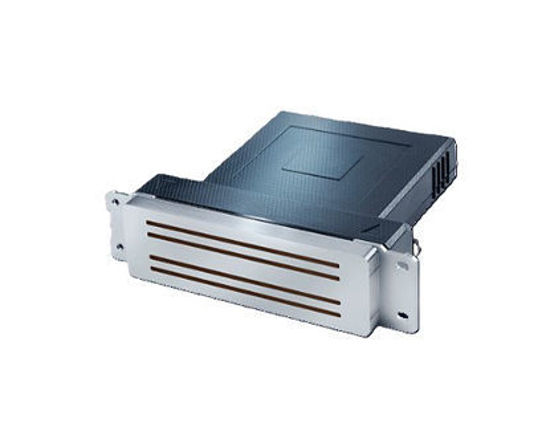

Seiko SPT RCH1536L 25-225pl UV Printhead - ICB1536T0L
Precio original
$4,679.26
-
Precio original
$4,679.26
Precio original
$4,679.26
$4,679.26
-
$4,679.26
Precio actual
$4,679.26
Description
This printhead is suitable for for ceramic, corrugated cardboard, textiles, inkjet printers. The RCH model features a metal nozzle plate.
The new head has the same electronic interface and the same plumbing as the existing RC1536, so that it can be used as a drop-in replacement.
Product Specifications
- Drop Volume Range: 25 to 225 pL
- Maximlum Productivity at 10 Drops: 2.477 µL/sec
- Discharge at 25M/min : 85 g/m²
- Possible print directions: Vertical and Horizontal
- Number of Grey Levels: up to 10
- Jetting Frequency: up to 37 kHz
- Native Nozzle Resolution: 360 npi
- Active Nozzles: 1536 at 4 rows
- Ink Inlets / Ink Outlets : 1/1
- Ink Compatibility: Oil, UV and aqueous inks
- Print width: 108.3 mm
- Weight: > 0.7 kg
- Dimensions: 180,0 x 47.6 x 123.3 mm
- Driving Interface: Parallel interface
It is highly recommended to replace the head cables together with a new printhead.
