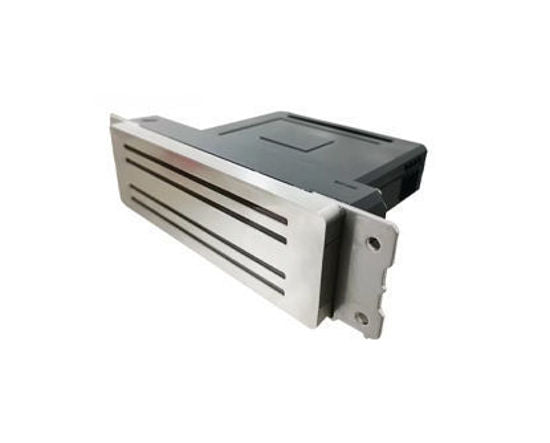

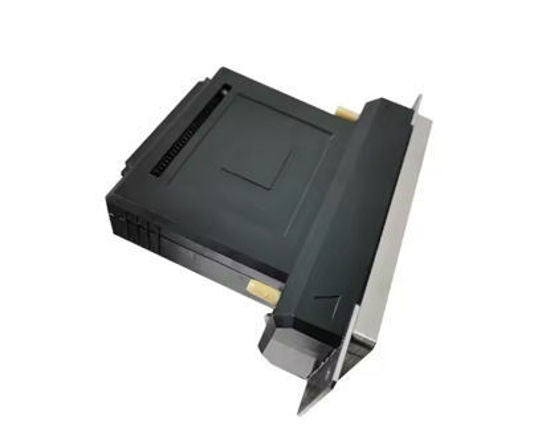

Seiko SPT RC1536L 25-225pl UV Printhead - ICA1536T0L

Seiko SPT RC1536L 25-225pl UV Printhead - ICA1536T0L

por Wide Image Solutions
$4,265.60 - $4,265.60
$4,265.60
$4,265.60 - $4,265.60
$4,265.60

Description

This printhead is suitable for for ceramic, corrugated cardboard, textiles, inkjet printers.

It is highly recommended to replace the head cables together with a new printhead.

Product Specifications

  • Drop Volume Range: 25 to 225 pL
  • Maximlum Productivity at 10 Drops:  2.477 µL/sec
  • Discharge at 25M/min : 85 g/m²
  • Possible print directions: Vertical and Horizontal
  • Number of Grey Levels: up to 10
  • Jetting Frequency: up to 37 kHz
  • Native Nozzle Resolution: 360 npi
  • Active Nozzles: 1536 at 4 rows
  • Ink Inlets / Ink Outlets : 1/1
  • Ink Compatibility: Oil and UV inks
  • Print width: 108.3 mm
  • Weight: > 0.7 kg
  • Dimensions: 180,0 x 47.6 x 123.3 mm
  • Driving Interface: Parallel interface
