Description
This MH5421F Ricoh printhead offers high-resolution printing and support for multiple ink colors with multi-row nozzles, as well as enhanced aqueous ink compatibility with new bonding technology. We recommend to change the head cables when installing a new printhead.

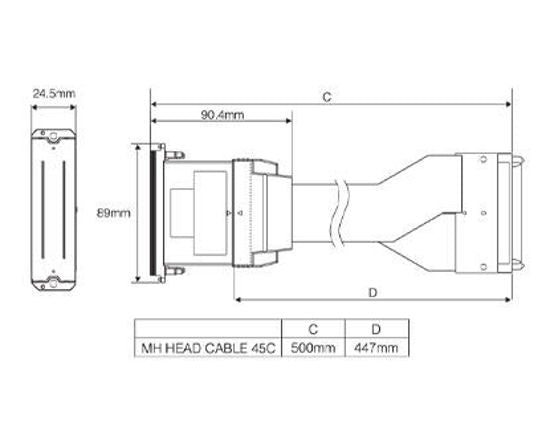

The head comes with a 447mm cable. the total length of head and cable is 500mm. The head ribbon cable is also available individually.
It is highly recommended to replace the head cables together with a new printhead.
Product Specifications

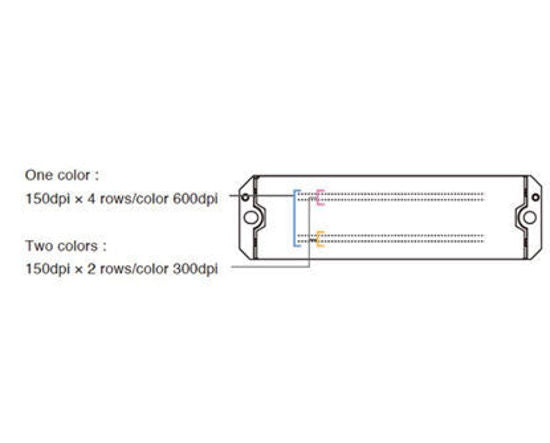

- Max. number of color inks: 2 colors
- Print width: 54.1mm
- Compatible ink: aquaeous ink

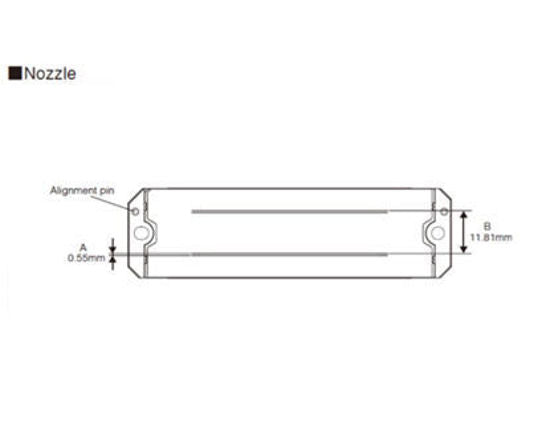

- Nozzle spacing: 1/150" (0.1693mm)
- Head materials: SST, Nickel alloy and Epoxy Adhesive
- Nozzle plate surface: Coated SST
- Number of nozzles: 4 x 320 nozzles (1280)
- Nozzle spacing: 0.1693 mm
- Temperature control: Integrated Heater and Thermistor
- Operator temperature range: Up to 50° C
- Drop volume: 7/14/21 pl (depending on the ink)
- Jetting frequency: 30 kHZ
- Viscosity range: 11mPa . s
- Gray-scale: 4 levels (depending on the ink characteristics)
- Total length: 248mm (cable length: 179mm)

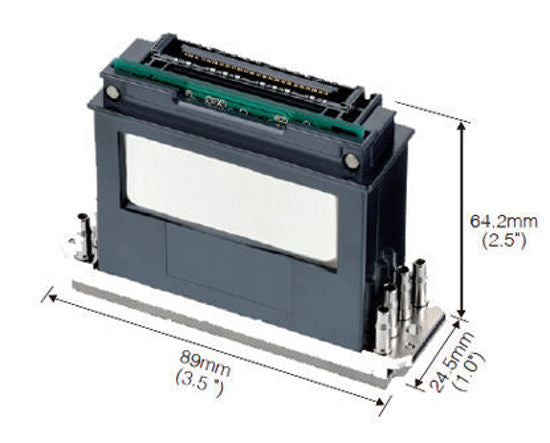

- Dimensions: 89 x 25 x 69 mm (excluding cables)
-
Weight: 155g
