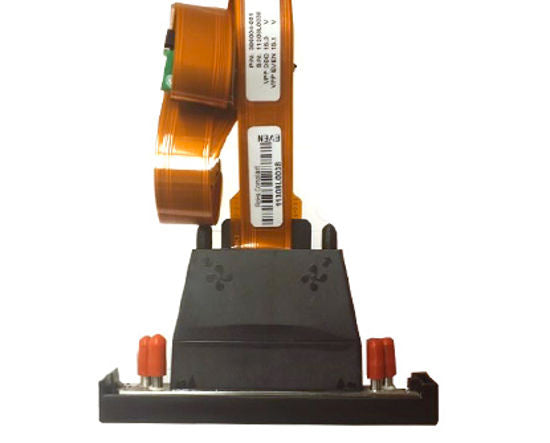

Ricoh GEN4L 15PL Printhead (Hose barb) - MH2620
Description
The Ricoh GEN4L printhead is suitable for a range of oil, water, solvent and UV printers, including the original D.Gen Teleios Grande, D.Gen Teleios (TJ-2600) and Teleios (TJ-3333). This printhead has an integrated heater and thermistor. This is Ricoh original printhead and it is covered by a manufacturer warranty.
This printhead is not compatible with the newer D.Gen Teleios Grande G5 or Teleios Grande/H6. These printers use Ricoh GEN5 Printhead Water (PPHRI18045).
This head comes with hose barbs. The hose barbs can be removed if printhead with o-rings is needed.
We recommend to change the head cables when installing a new printhead.
Specifications
- Size: 13,2 x 120 x 75,5 mm (excluding cables)
- Head Materials: SST, Ni and Epoxy Adhesive (direct contact with ink)
- Nozzle Plate Surface: Non-wet coating
- Number of Nozzles: 2 x 192 nozzles
- Nozzle Spacing: 0,1693 mm
- Piezo Type: D33 Stacked PZT
- Temperature Control: Integrated Heater and Thermistor
- Operator Temperature range: Up to 80° C
- Native Drop Volume: 15 pl
- Drop Volume Range: 15-45 pl
- Jetting Frequency: Up to 30 kHZ
- Life: 100 billion actuations per nozzle
Printer compatibility
- AmicaSystems PA32
- d.gen Artrix GTII
- d.gen Teleios (TJ-2600)
- d.gen Teleios Grande (3333TX)
- d.gen Teleios Grande (TJ-3333)
- d.gen Teleios XL (XL2600)
