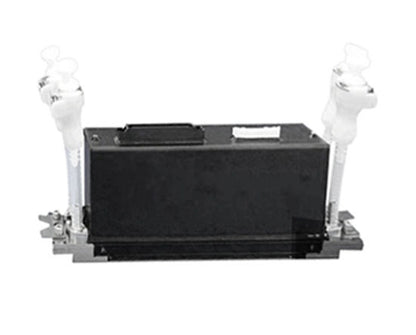

Kyocera Water Printhead KJ4B-QL - For MS Printers
Description
This Kyocera KJ4B-QL is designed for high speed printing with water-based inks, in 600 dpiwith a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 75 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.The Kyocera KJ4B-QL is equipped with internal filters to preventparticles to reach the nozzle plate and an internal heater that adjusts the temperature. We recommend to change the head cables when installing a new printhead. The Kyocera KJ4B-QL is replacing the Kyocera KJ4B-QA.
The Kyocera KJ4B-QL printhead is available in 3 different models:
- Standard for all printers other than MS and EFI Reggiani

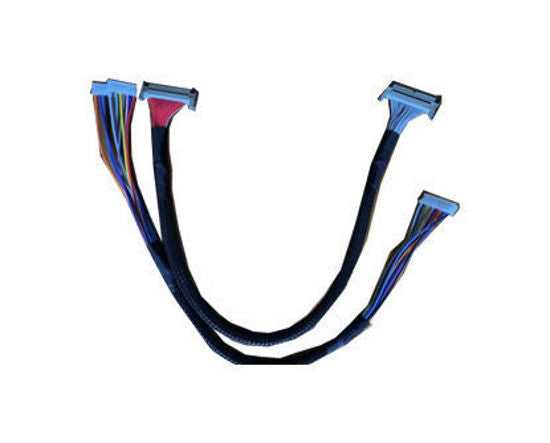

- MS printers including the head cable
-
EFI Reggiani printers including the head cable
Please select the printhead model carefully as they are not interchangeable.
- Ink Type: Aqueous Ink
- Dimensions: 200 × 25 × 59.3mm
- Dry Weight: 420g
- Total Nozzles: 2.656
- Nozzle Pitch: 0.042mm
- Standard Resolution: 600 x 600 dpi
- Print Width: 108.25mm
- Max. Drive Frequency: 30kHz
- Drop Volume: 5, 7, 12 and 18pl
- Max. Sprint Speed: 75m/min
-
Optimum Ink viscosity: 5.0 - 6.0 mPa*s
Printer compatibility
- JP4EVO
- MCS Eagle
- MS Italy JP6
- Xerox Rialto 900
