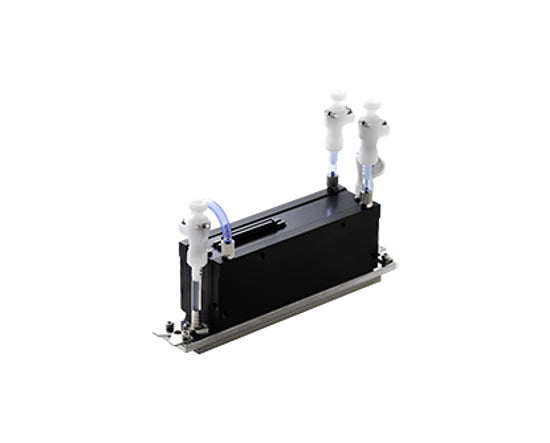

Kyocera Water Printhead - KJ4B-EX600-RC

Kyocera Water Printhead - KJ4B-EX600-RC

por Wide Image Solutions
$3,557.70 - $3,557.70
$3,557.70
$3,557.70 - $3,557.70
$3,557.70

Description

This original KJ4B-EX600-RC printhead is designed for  high-speed printing with water-based ink. This series delivers excellent productivity — not only in single-pass applications such as transaction, document, and security printing using MICR ink, but also in multi-pass applications, including textile printing.

It is highly recommended to replace the head cables together with a new printhead.

Product Specifications

  • Ink Type: Water-based ink
  • Maximum Drive Frequency (kHz): 40
  • Resolution (dpi): 600dpi x 600dpi
  • Print Speed (m/min): 101.6
  • Drop Volume (pL): Min. 5, max. 14
  • Nozzle Recirculation: Yes
  • Width×Length×Height (mm): 200×41.6×68.2
  • Number of Nozzles: 2,656 (2,560)
  • Effective Print Width (mm): 108.33
  • Recommended Ink Viscosity (mPa*s): 5.0~6.0
