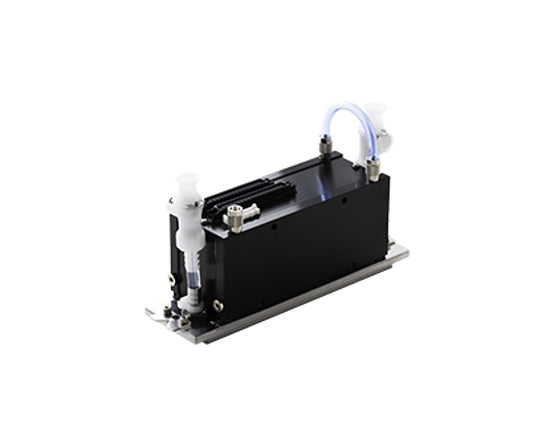

Kyocera Water Printhead - KJ4B-EX1200-RC

Kyocera Water Printhead - KJ4B-EX1200-RC

por Wide Image Solutions
$11,707.72 - $11,707.72
$11,707.72
$11,707.72 - $11,707.72
$11,707.72

Description

This original Kyocera KJ4B-EX1200-RC printhead is designed for  high-speed printing with water-based ink. This series delivers excellent productivity — not only in single-pass applications such as transaction, document, and security printing using MICR ink, but also in multi-pass applications, including textile printing.

It is highly recommended to replace the head cables together with a new printhead.

Product Specifications

  • Ink Type: Water-based ink
  • Maximum Drive Frequency (kHz): 80
  • Resolution (dpi):1200dpi x 1200dpi
  • Print Speed (m/min): 101.6
  • Drop Volume (pL): Min. 2, max. 4
  • Nozzle Recirculation: Yes
  • Width×Length×Height (mm): 200×55.5×79.15
  • Number of Nozzles: 5,116
  • Effective Print Width (mm): 108.27
  • Recommended Ink Viscosity (mPa*s): 5.0~6.0
