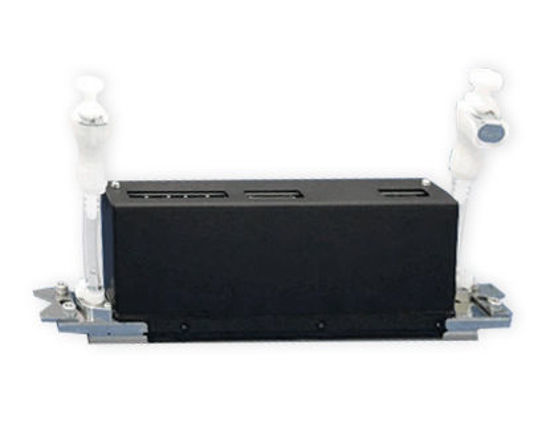

Kyocera Inkjet Printhead KJ4A-AL
Precio original
$4,898.60
-
Precio original
$4,898.60
Precio original
$4,898.60
$4,898.60
-
$4,898.60
Precio actual
$4,898.60
Description
The KJ4A-AL printhead Series is designed for UV-curable inks or other high viscosity inks. It is optimal for Label/Packaging, Sign Graphics, Offset Surprint and others. It is a 600dpi one colour printhead with a maximum drive frequency of 20kHz. It delivers high quality with a small drop volume of 3pl at 50 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe.
The Kyocera KJ4A-AL is equipped with internal filters that eliminate foreign objects in ink and an internal heater that adjusts the impact of external temperatures. It’s unique ink channel design provides a stable ink supply.
We recommend to change the head cables when installing a new printhead.
The Kyocera KJ4A-AL is replacing the Kyocera KJ4A-AA.
Specifications
- Ink Type: UV Ink
- Dimensions: 200 × 25 × 57.9mm
- Dry Weight: 420g
- Total Nozzles: 2.656
- Standard Resolution: 600 x 600 dpi
- Print Width: 108.25mm
- Max. Drive Frequency: 20kHz
- Drop Volume: 3, 6, and 13pl
- Max. Sprint Speed: 50m/min
-
Optimum Ink viscosity: 6.0 - 7.0 mPa*s
Printer compatibility
- Dilli Neo Sun FB2513-04 D-WX
- Dilli NEO SUN HB 2504D-W2XL
- NEO SUN HB 2504 D-DXL
