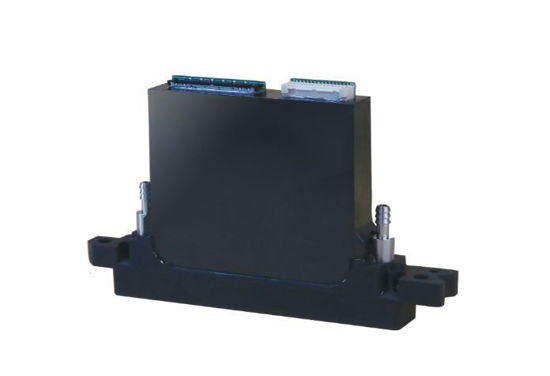

Konica KM1024a SAE-Q Printhead
Description
The Konica Minolta KM1024a SAE-Q Printhead has 1024nozzles. It is compatible with water-based inks.
We recommend to change the head cables when installing a new printhead.
High Productivity Analogue Waveform : Adopting analogue waveform that can achieve high productivity and print accuracy in multiple drops. High flexibility to optimize the waveform for individual inks.
Compact Print Head : Light weight (150g) and compact (17.6mm wide) print head enables compact printer design. Mechanical compatibility with KM1024i series print heads.
Robust Nozzle Plate : New nozzle plate material with even higher scratch resistance around 100 times* better than the previous version. *Based on internal measurement
High Drop Accuracy : Introduced a new production method to optimize the drop velocity for individual nozzles. Analogue waveform also enables improved drop accuracy.
Specifications
- Drive Mode: Independent
- # of nozzle: 1024
- Print Width (mm): 72

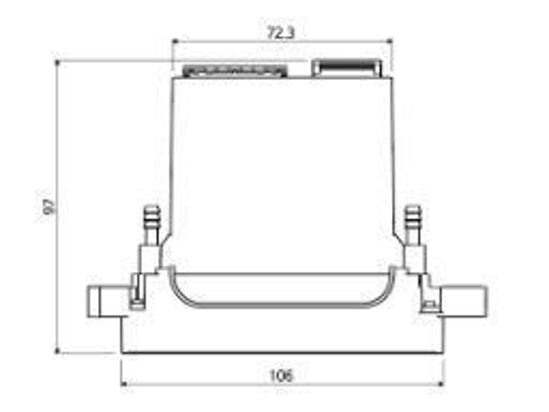

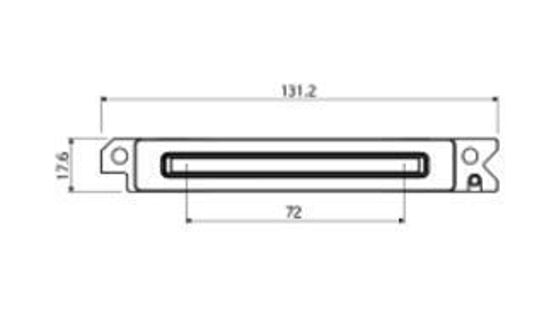

- Head dimensions : W: 131.2mm x D: 17.6mm x H: 97mm
- Regular jetting frequency (kHz) 40kHz (Binary) :29kHz (4dpd)
- Drop volume (pL): 6pL (Binary) 18pL (4dpd)
- Jetting temperature: RT~55℃
- Internal heater: Available
- Ink Type: Water-based inks.
- Ink Viscosity (mPa・s): 7-10
- Waveform: Analogue
- Weight: 150g
- Grey scale level: 8 level
