A solid-color banner should look solid from edge to edge. When faint horizontal lines, light gaps, or alternating dark and light stripes appear instead, the job can become a costly reprint - especially when it is headed to a client, a jobsite, or a vehicle wrap install. If you are asking why does plotter banding happen, the short answer is that the printer is not laying down ink consistently from one carriage pass to the next.
In wide-format production, banding is a print-quality issue, not usually a cutting issue. A vinyl cutter or CAD plotter that only cuts lines does not produce ink bands. An inkjet plotter, photo printer, or print-and-cut device can. The right fix depends on what the banding looks like, when it occurs, and whether the problem follows a specific color, media type, or print mode.
What Plotter Banding Looks Like

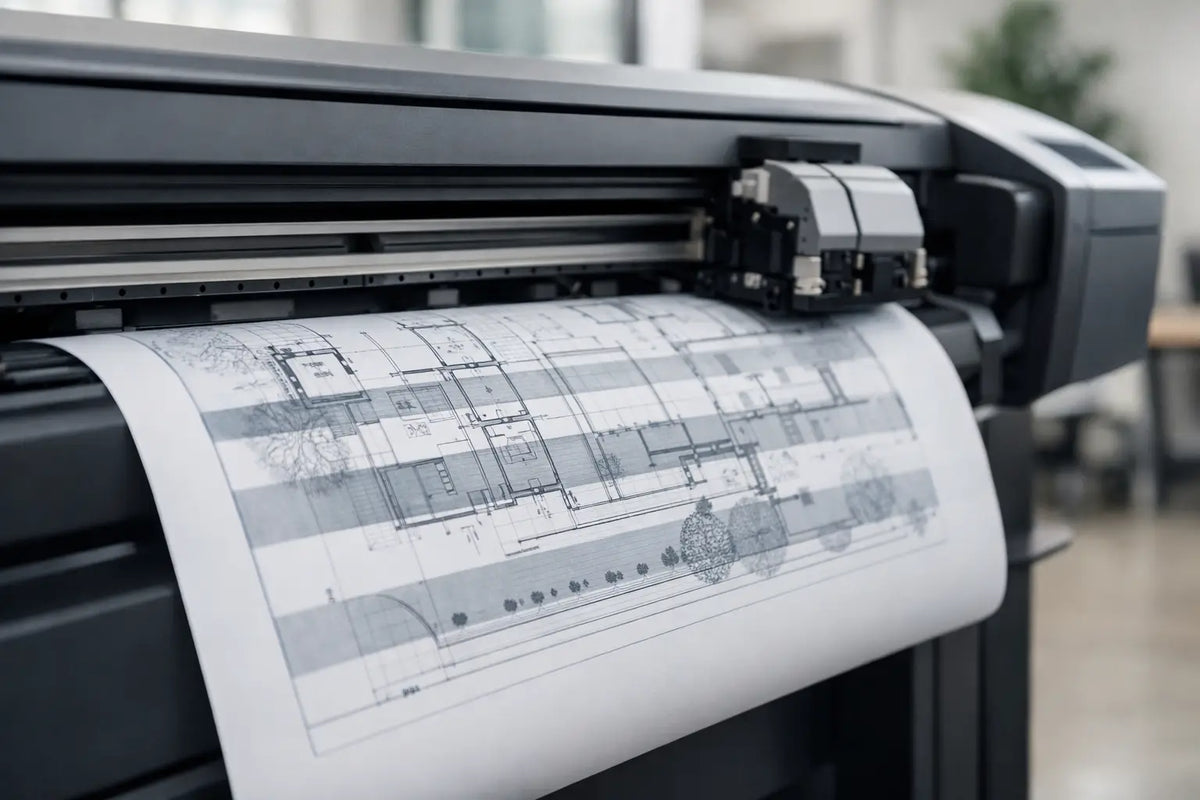

Banding usually appears as horizontal lines running across the printed image, perpendicular to the direction the media feeds. It is most visible in large areas of cyan, magenta, black, gray, sky gradients, and photographic shadows. A light band may indicate missing ink, while a dark band can point to excessive ink, inaccurate feed movement, or a pass-overlap problem.
Do not confuse banding with other output defects. Vertical lines often relate to printhead alignment, encoder-strip contamination, or image data. Grainy output may be caused by a low-resolution print mode or the wrong media profile. Smearing, pooling, and fuzzy edges are more likely related to ink limits, dry time, heater settings, or unsuitable media.
The pattern is useful diagnostic information. Consistent lines at the same interval from top to bottom often suggest media advance or carriage-pass issues. Bands that appear only in one color commonly point to a nozzle, ink delivery, or printhead problem.
The Most Common Reasons a Plotter Bands
Clogged or Deflecting Nozzles
This is the most frequent cause of light horizontal banding on aqueous, eco-solvent, solvent, latex, and UV inkjet equipment. Each printhead contains many small nozzles. If a nozzle is partially blocked, firing weakly, or deflecting, that portion of the image receives too little ink during each pass.
Start with a nozzle check or printhead test pattern. Missing segments, broken lines, or a weak color channel provide a clear reason to clean or recover the affected head. Run the manufacturer-recommended cleaning cycle first, then print another test. Repeated aggressive cleanings are not a good long-term strategy. They consume ink, fill maintenance components, and can still fail to correct a damaged printhead.
If the nozzle pattern does not recover after appropriate cleaning and maintenance, inspect the ink system. A depleted cartridge, expired ink, air in the line, clogged damper, failing cap station, weak pump, or dried wiper can prevent reliable ink delivery. On a production machine, replacing worn maintenance parts before they cause downtime is often less expensive than troubleshooting a missed deadline.
Incorrect Printhead Alignment or Bi-Directional Calibration
Wide-format printers place ink while the carriage moves in both directions. If left-to-right and right-to-left firing are not synchronized, passes may overlap incorrectly or leave a slight gap. The result can resemble banding, often with a soft texture or fine line pattern that becomes more visible at normal viewing distance.
Run the machine's printhead alignment and bi-directional calibration procedures after moving equipment, replacing a printhead, changing carriage components, or noticing registration issues. These calibrations should be performed on the media type and print mode that reflect the production work being evaluated. A calibration completed on plain paper may not translate perfectly to heavy banner, textured fine art media, or a coated film.
Media Advance Errors
Your printer must advance the substrate by an exact distance after every pass. If it moves too far, white or light gaps appear. If it moves too little, passes overlap and create dark stripes. This is especially common on thicker, slippery, curled, poorly loaded, or heat-sensitive media.
Media advance calibration is often overlooked because the printer may seem mechanically sound on one substrate and band badly on another. The feed characteristics of coated paper, adhesive vinyl, backlit film, canvas, and banner material are not the same. Temperature and humidity can also change how a material expands, dries, and travels through the machine.
Check that the roll is loaded square, the pinch rollers are positioned correctly, and the take-up system is not pulling too hard. Verify that the spindle and media path allow the roll to unwind freely. On longer unattended runs, inconsistent tension can create banding that does not appear on a short test print.
Print Mode, Pass Count, and Speed Settings
Fast production modes use fewer passes and place more responsibility on accurate ink firing and media movement. They are valuable for construction drawings, temporary signage, and high-volume graphics where speed matters. But a low-pass mode can expose slight nozzle loss, feed errors, or uneven ink distribution that would be hidden in a higher-quality setting.
Before assuming the printer has a mechanical failure, print the same file in a higher-pass or quality mode. If the banding improves substantially, the machine may be operating within the limits of its current speed setting, but the job requires a more forgiving production profile. The trade-off is throughput. Higher pass counts improve uniformity but increase print time and may affect drying requirements.
For premium photographic prints, close-view retail graphics, fine gradients, and high-value vehicle wrap panels, quality mode is usually the safer choice. For CAD output or distance-viewed signage, a faster setting may be commercially appropriate once nozzle health and calibration are confirmed.
Wrong Media Profile or Excessive Ink Load
A media profile controls how much ink the printer lays down, how colors are built, and how the printer manages passes and drying. Using a generic profile on specialty media can cause uneven color, bronzing, saturation changes, and bands that appear as the ink dries.
Too much ink is a common issue on uncoated stock, economy banner, incompatible vinyl, or media being run with the wrong profile. The surface cannot accept the ink evenly, so droplets pool or dry inconsistently. Too little ink can make solid areas look weak and striped. The answer is not always more ink. It is the correct ink limit, linearization, and profile for that material.
Use manufacturer-supported media profiles whenever possible. If a shop repeatedly runs a specialty material, a custom profile and calibrated workflow can pay for itself through fewer reprints and more predictable color.
Dirty Encoder Components or Mechanical Wear
The encoder strip and encoder sensor help the carriage determine its position. Dust, overspray, dried ink, or fingerprints on these components can cause timing errors that show up as print defects. Likewise, worn belts, contaminated rails, failing carriage bearings, or irregular carriage movement can affect pass placement.
Clean only according to the equipment manufacturer's service guidance. Encoder strips are delicate, and the wrong solvent or excessive force can create a larger repair. If banding is paired with carriage errors, unusual noise, inconsistent head alignment, or repeated calibration failure, the issue may require a technician rather than another cleaning cycle.
A Practical Troubleshooting Order
When a plotter bands, avoid changing every setting at once. That makes it difficult to identify the cause and can waste media and ink. Use a controlled sequence:
1. Print a nozzle check and inspect each color channel.
2. Confirm ink levels, cartridge condition, and routine maintenance items such as wipers, caps, and waste systems.
3. Run printhead alignment and bi-directional calibration if the nozzle check is acceptable.
4. Verify media loading, pinch roller placement, roll tension, and take-up operation.
5. Print a known test file using the correct media profile and a higher-quality pass mode.
6. Perform media advance calibration if the pattern remains evenly spaced across the print.
7. Inspect encoder components and arrange service when mechanical symptoms or persistent errors are present.
Keep a sample of the defect and record the printer model, ink set, media, profile, temperature, humidity, and print mode. That information turns a vague quality complaint into a faster support conversation.
When Banding Is a File or RIP Issue
Most banding begins at the printer, ink, or media level, but the RIP and file should not be ignored. A low-resolution raster scaled far beyond its intended size can show visible tonal steps that look like bands. Poorly built gradients may also contain discrete color transitions. If the defect appears in the exact same image area regardless of media direction or printer settings, inspect the artwork.
Print a built-in printer test or a known-good diagnostic image. If that print is clean but the production file bands, review the resolution, gradient construction, color conversion, and RIP preset. If both prints show the same defect, focus on the equipment and workflow conditions instead.
Prevent Banding Before It Reaches a Client
Consistent maintenance is the best defense against avoidable reprints. Run nozzle checks before critical production, keep the printer environment within recommended operating conditions, store media correctly, and use inks and maintenance parts specified for the machine. Shops that switch frequently between paper, vinyl, banner, and film should also maintain proven presets for each material rather than relying on one universal profile.
For operators managing revenue-producing wide-format equipment, banding is not just a cosmetic defect. It affects color confidence, material cost, labor time, and delivery schedules. Wide Image Solutions supports professional print workflows with equipment, inks, media, replacement parts, and practical technical resources designed to keep production moving.
When the next banded print appears, begin with the nozzle check, make one controlled correction at a time, and test on the actual media the job requires. That disciplined approach protects output quality and helps your plotter earn its place on the production floor.
