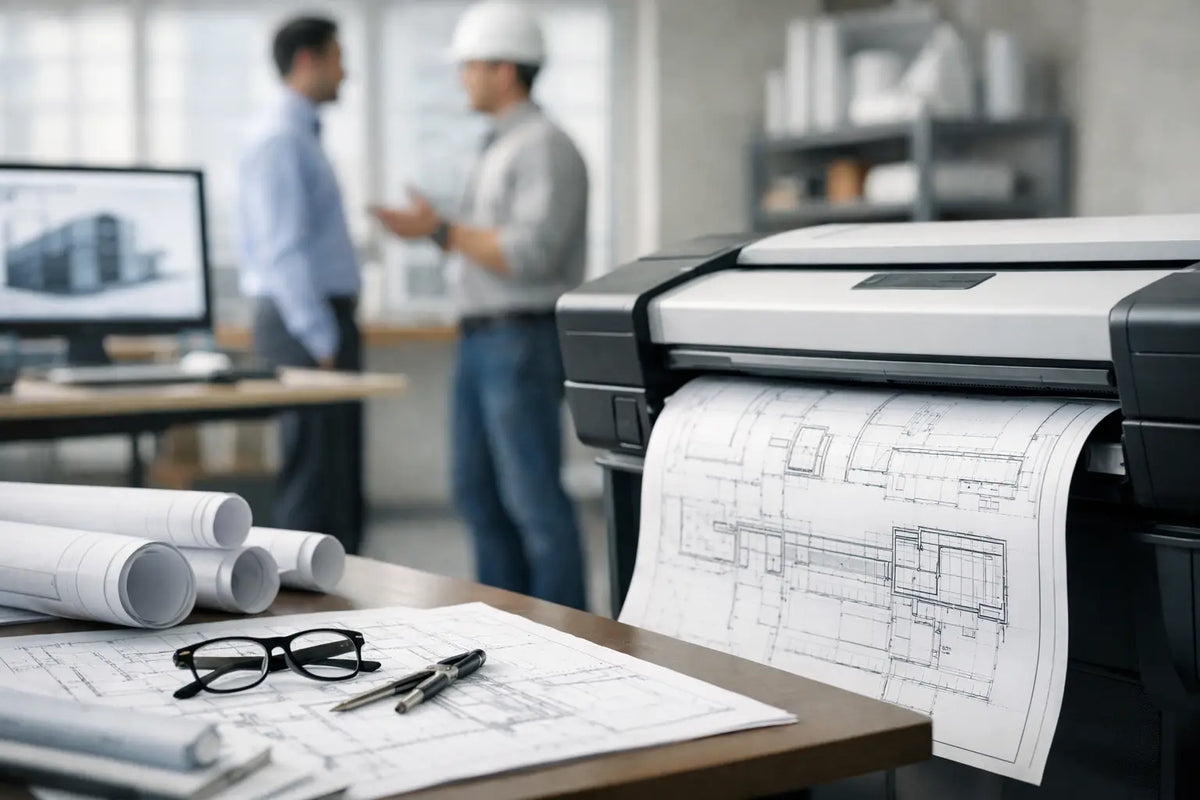

A missed bid deadline can come down to something as ordinary as a drawing set stuck in a print queue. When field crews, architects, and project managers are waiting on current plans, a plotter is not an office accessory. It is part of the production line. The best plotter for engineering firms is the one that produces accurate CAD documents at the required volume without creating bottlenecks, excessive ink costs, or avoidable service calls.
For most firms, the decision is less about finding the lowest purchase price and more about matching the machine to real drawing sizes, submission schedules, team size, and support requirements. A compact 24-inch unit can be a smart fit for a small civil or consulting office. A busy AEC department printing plan sets every day may need a 36-inch or 44-inch production-class machine with multiple rolls, fast first-page-out performance, and secure network controls.
Start With the Drawings Your Team Actually Prints
Engineering firms commonly need D-size 24-by-36-inch documents, while larger site plans, utility maps, renderings, and presentation boards can require E-size 36-by-48-inch output or wider. That makes print width the first practical filter.
A 24-inch plotter is appropriate when the majority of work is 24-inch-wide CAD output and floor space is limited. It is usually the most economical way to bring plotting in-house for a small office. However, it leaves no room for 36-inch plans. Outsourcing those occasional larger sheets can quickly erase the initial savings.
For many engineering firms, a 36-inch plotter is the working standard. It handles D-size drawings efficiently and supports E-size sheets in many common orientations. It also gives teams more flexibility for color site plans, marked-up drawings, and client presentation graphics. A 44-inch machine makes sense when the firm routinely produces wide maps, infrastructure plans, GIS work, or display-quality boards, or when it wants more breathing room around nonstandard page sizes.
Do not select a wider plotter simply because it sounds more capable. Larger equipment takes more floor space, uses wider media, and may cost more to operate. Buy width for the drawings and applications you sell or submit, not for unused capacity.
What Makes the Best Plotter for Engineering Firms?
Precision matters, but engineering output has a different priority stack than photographic printing. Fine line reproduction, legible small text, dependable paper handling, and predictable throughput usually matter more than maximum color gamut. A plotter should reproduce line weights and shaded areas cleanly, even on dense plan sheets with layers, hatches, and annotations.
Speed Means More Than Pages Per Hour
Published print-speed ratings are useful, but they do not tell the whole story. Engineering teams should pay attention to first-page-out time, processing speed for complex PDF files, and how quickly the device moves from one drawing to the next. A fast unit that pauses for media changes or struggles with large files will not help at 4:30 p.m. before a submittal deadline.
Look for features that reduce operator intervention. Dual-roll capability lets one roll carry plain bond paper while another carries a different size or heavier presentation media. Automatic roll switching helps prevent interruptions. A catch basket or stacker keeps finished drawings organized instead of piling onto the floor. These details have a direct effect on how quickly a team can assemble and distribute a set.
Ink Economy and Media Flexibility
Monochrome-heavy CAD output can make ink consumption a significant operating expense. Evaluate cartridge capacity, replacement cost, and the printer's ink system rather than comparing only the machine price. Higher-capacity ink options often make financial sense for departments printing hundreds of sheets each month.
Plain bond paper will handle most construction documents, but an engineering firm may also need coated media for color renderings, durable media for jobsite use, or heavier stock for client meetings. A good plotter should support the media types your staff uses now and accommodate the occasional high-value presentation piece without requiring a separate device.
Pigment ink is often preferred where water resistance and durability are priorities. Dye-based systems can deliver strong color for graphics but may not be the ideal fit for documents that will be handled outdoors or exposed to moisture. The right choice depends on the proportion of technical documents versus presentation materials in your workflow.
Network, Security, and File Workflow
A plotter can have excellent print quality and still frustrate the office if it does not integrate cleanly with the network. Engineering firms should confirm compatibility with their operating systems, CAD applications, PDF workflows, and preferred print-management tools. Drivers matter, especially when different teams send files from AutoCAD, Revit, Civil 3D, Bluebeam, or GIS platforms.
Security is also a practical purchasing consideration. Project documents may contain sensitive site information, public infrastructure details, or confidential client data. Features such as user authentication, secure print release, encrypted storage, automatic document deletion, and network security settings can be valuable for larger firms and regulated projects.
For offices with remote staff or multiple locations, web-based job monitoring and remote printer management can reduce wasted trips to the print room. The objective is simple: users should be able to send a correctly scaled drawing, know its status, and retrieve it without needing an IT workaround.
Choosing Between Office and Production Plotters
Not every engineering firm needs a high-volume production plotter. A smaller technical office with a few engineers may be better served by an entry-level or mid-volume CAD printer that offers dependable 24-inch or 36-inch output at a manageable investment. These machines can be highly effective when print volume is steady but not extreme.
A production-class plotter becomes the better investment when the office prints multiple sets per day, supports several project teams, or faces repeated deadline surges. These systems are built around faster throughput, larger ink supplies, heavier-duty roll handling, and reduced downtime. They cost more upfront, but they can eliminate outsourced plotting charges and protect staff time.
Refurbished professional equipment is another valid path, especially for firms building an in-house print department or replacing an aging unit on a defined budget. The value depends on the machine's condition, included warranty, availability of parts, and the seller's ability to provide technical support. A low-cost used plotter without service history or consumable availability can become an expensive interruption. A properly inspected refurbished unit with support can deliver production-grade capability at a lower capital cost.
A Practical Buying Checklist
Before comparing models, collect one month of print data. Count the number of sheets, record the most common paper widths, and identify how often teams print color versus black-and-white plans. Ask who prints, when the rush periods occur, and whether the firm is currently outsourcing any work.
Then evaluate each plotter against these operating questions:
- Can it print the widest plan size your firm needs without awkward rotation or trimming?
- Does its real throughput support deadline-day volume, not just average daily usage?
- Are ink, printheads, maintenance parts, and media readily available?
- Can the unit handle both technical bond paper and presentation media when required?
- Does it fit your network, security policy, floor space, and electrical requirements?
- Is qualified technical support available after installation?
Plan for Uptime Before You Purchase
Plotters are revenue-supporting equipment. A blocked printhead, worn cutter, incorrect media loading, or outdated driver can delay an entire project team. Before purchasing, ask how routine maintenance is handled, whether replacement parts are available, and who will help troubleshoot an error when a deadline is approaching.
It is also wise to keep essential consumables on hand. Ink cartridges, compatible bond paper, maintenance cartridges, and commonly replaced components should not become emergency orders. Establishing a simple operating routine for nozzle checks, media loading, firmware updates, and cleaning can extend equipment life and protect output quality.
Wide Image Solutions helps firms evaluate new and refurbished wide-format equipment around print volume, drawing sizes, media needs, and long-term operating costs. The right recommendation starts with the work leaving your print room, not a generic model ranking.
A plotter earns its place in an engineering office when it turns approved files into accurate, usable documents without making the team think about the machine. Choose for the volume you have, the projects you are winning, and the service support you will need when the deadline is real.
