A faint horizontal band, a carriage crash, or a printer that suddenly reports a positioning error can turn a profitable production day into a service call. Knowing how to clean printer encoder components correctly can restore accurate carriage movement without creating a larger problem. The key is understanding which encoder your machine uses, cleaning only the correct surface, and using materials that will not scratch, stretch, or contaminate it.
For wide-format printers, encoder maintenance is not cosmetic. The encoder strip or disk provides positional feedback that tells the printer where the carriage, media drive, or feed mechanism is located. When ink mist, dust, dried coating, or fingerprints interfere with that reading, print quality and machine accuracy can suffer fast.
What a Printer Encoder Does
Most wide-format inkjet printers use a clear encoder strip running horizontally behind the print carriage. Fine markings on this strip are read by an optical sensor mounted on the carriage. The printer uses those markings to control carriage position, firing timing, and print alignment.
Some equipment also uses an encoder disk or wheel. This is usually located near a feed motor, paper advance assembly, or pinch roller drive and helps the printer track media movement. Plotters, cutters, and certain laminating systems may use similar optical feedback components.
When an encoder is dirty, the printer can misread its position. Common symptoms include inconsistent banding, shifted print passes, carriage errors, failed initialization, inaccurate media feed, or a carriage that moves erratically. These symptoms can also point to a damaged sensor, failing motor, loose belt, worn bearing, or software issue, so cleaning is a logical first maintenance step, not a guaranteed cure.
Before You Clean the Printer Encoder
Start with the service manual for your specific printer model. Manufacturers do not all use the same encoder materials, access points, or approved cleaning fluids. A solvent that is harmless on one machine may cloud, erase, or weaken another encoder strip.
Power the printer down using its normal shutdown procedure, then switch it off and unplug it if the manual directs you to do so. Allow the carriage to park properly before cutting power. On many production printers, forcing a carriage by hand can damage the belt, carriage lock, capping station, or encoder sensor.
Use a bright work light. You need to see ink buildup and lint without touching the strip repeatedly. Keep loose sleeves, jewelry, and tools away from the carriage path.
Have these supplies ready:
- Clean, lint-free foam swabs or non-shedding wipes
- Distilled water, if approved for the printer
- The manufacturer-approved cleaning solution, if specified
- Nitrile gloves to prevent fingerprints and skin oils
- A flashlight or focused inspection light
How to Clean a Printer Encoder Strip
The safest method uses minimal moisture and almost no pressure. An encoder strip is thin and precisely marked. Pulling on it, bending it, or scrubbing it can create the same carriage-position problems you are trying to solve.
1. Inspect the strip and sensor area
Open the printer cover and locate the clear strip behind the carriage rail. It may appear nearly transparent until light catches the fine dark markings. Inspect it from end to end for ink splatter, oily fingerprints, dust buildup, nicks, or slack.
Also look at the encoder sensor on the carriage. The strip passes through a narrow sensor slot. Do not insert a wipe, swab, screwdriver, or fingernail into that slot. If the strip looks clean but the sensor is visibly contaminated, the printer may require model-specific service procedures.
2. Move the carriage only as the manufacturer allows
Some printers provide a maintenance position that lets you access the strip safely. Others permit careful manual carriage movement only when the machine is powered off and unlocked. Follow the manufacturer procedure rather than assuming the carriage can be pushed aside.
If the carriage does not move freely, stop. Forcing it risks belt damage and can turn a basic cleaning task into an avoidable repair.
3. Lightly moisten a lint-free wipe
Use only enough distilled water or approved solution to dampen the wipe. It should not drip. Excess liquid can run into the sensor, carriage electronics, or rail assembly.
In many cases, distilled water is enough for light dust and fresh ink mist. Dried ink or greasy contamination may require an approved cleaner. Do not use acetone, lacquer thinner, window cleaner, ammonia-based products, or high-strength alcohol unless the printer manufacturer explicitly approves them. These products can damage encoder markings or leave residues that interfere with optical reading.

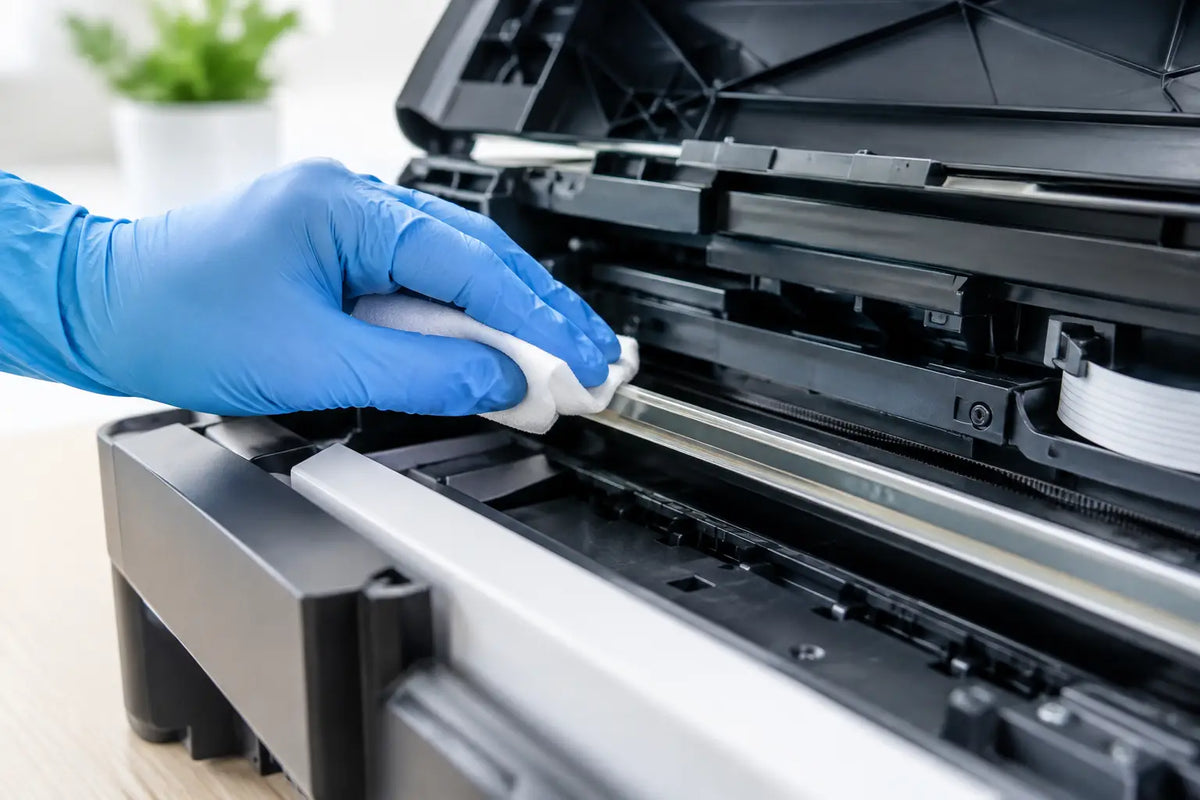

4. Support the strip and wipe gently
Place the damp wipe around the encoder strip with very light contact. Support the strip from the opposite side with a second clean finger or dry wipe if access allows. Then move the wipe slowly along a short section of the strip.
Do not pinch hard. Do not pull downward or sideways. Do not use a back-and-forth scrubbing motion. Work in controlled passes, changing to a fresh section of the wipe whenever it picks up visible ink.
Clean the full accessible length, paying extra attention to areas where the carriage spends most of its time. On busy solvent, UV, latex, and aqueous production printers, the center section often collects the most airborne ink and dust.
5. Let the strip dry completely
Use a clean, dry lint-free wipe only if moisture remains visible. Otherwise, allow the strip to air dry for several minutes with the cover open. Do not power the printer back on while the strip or sensor area is wet.
Once dry, inspect the strip again under good light. It should look clear and free of streaks. A hazy film, visible scratches, missing markings, or a loose strip indicates cleaning may not be enough.
6. Restart and verify performance
Power the machine on normally and allow it to complete initialization. Run the printer's alignment, calibration, or encoder-related diagnostic routine if available. Then print a nozzle check and a small test image with solid color areas, fine lines, and repeated patterns.
Watch for carriage hesitation, new error messages, banding, or image shifts. If the issue disappears, document the maintenance in your shop log. Tracking recurring encoder contamination can reveal a ventilation, media dust, ink overspray, or cleaning-schedule problem.
Cleaning an Encoder Disk or Media Feed Encoder
An encoder disk requires more caution because it is often mounted directly on a motor shaft. It may be a clear or dark wheel with fine radial marks, located behind a cover near the media-feed motor.
Do not remove the disk unless the service manual specifically calls for it. A disk that is reinstalled off-center, bent, or contaminated with fingerprints can cause severe feed errors. If access is limited, clean only the visible surface with a lightly dampened foam swab and no side pressure.
Media-feed problems are not always encoder problems. Check for worn pinch rollers, media debris, incorrect loading tension, loose drive belts, and incompatible media profiles before replacing parts. On a printer producing CAD drawings, banners, wraps, or photographic output, even a small feed error can become highly visible over long runs.
When Cleaning Is Not the Right Fix
Stop cleaning and move to diagnosis if the encoder strip is scratched, stretched, loose, yellowed, or has missing markings. Replacement is typically the correct repair. Continued wiping will not restore damaged optical markings.
The same applies when the printer continues to throw encoder errors after a careful cleaning and restart. The cause may be a failed encoder sensor, damaged carriage cable, carriage-board issue, motor fault, or control-board problem. Replacing parts without confirming the error source can add downtime and cost.
For commercial shops, the practical decision is based on uptime. A simple cleaning is appropriate for light contamination and routine maintenance. Persistent carriage faults, repeated alignment failures, or physical damage call for qualified technical support and the correct OEM-compatible replacement part.
Prevent Encoder Contamination in Production Environments
Encoder strips stay cleaner when the printer itself is kept clean. Wipe ink mist from accessible interior surfaces during scheduled maintenance, use media that sheds less dust, and avoid storing open media rolls near the printer carriage path. Keep the printer cover closed during operation whenever the workflow allows.
High-volume print rooms also benefit from regular maintenance intervals rather than waiting for an error. The right schedule depends on ink technology, production volume, room dust, and whether the equipment is used for high-coverage signs, vehicle graphics, CAD output, or photo printing. A shop running daily banner production may need inspections far more often than an office plotter used a few times per week.
Treat the encoder as a precision component, not a general cleaning surface. A few careful minutes with approved materials can protect alignment, reduce avoidable errors, and keep revenue-producing wide-format equipment ready for the next job. When the strip shows physical damage or the fault persists, accurate diagnosis and the right replacement support are the faster route back to dependable output.
