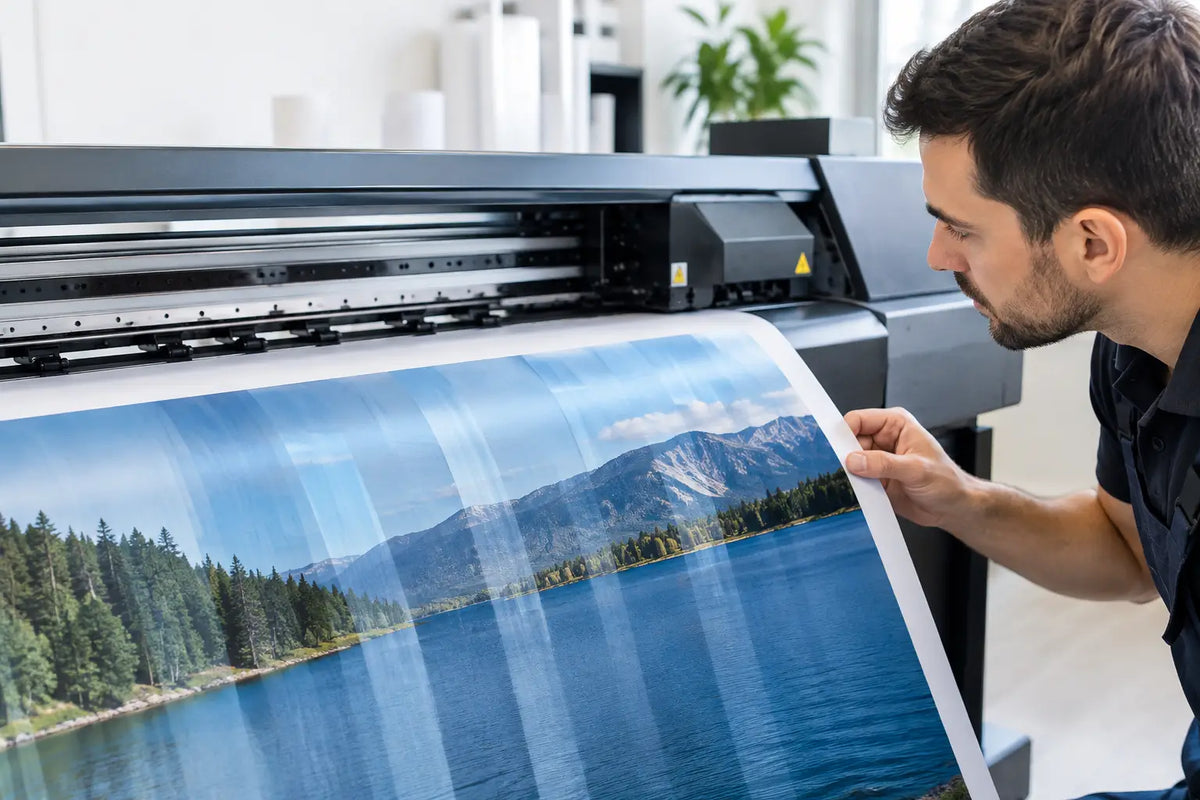

A banner can look perfect on screen and still come off the printer with pale horizontal stripes, dark passes, or visible gaps that make the job unacceptable to a customer. If you are asking, why is my plotter banding, the answer is usually not one dramatic failure. Banding is most often a printhead, ink delivery, media, profile, or maintenance issue that has gradually affected output quality.
For sign shops, CAD departments, wrap installers, and print service providers, the fastest fix is not always the right fix. Running repeated cleanings may temporarily improve the print while wasting ink and leaving the root cause untouched. Start by identifying what the banding looks like, then work through the machine, media, and file settings in a controlled order.
What Plotter Banding Looks Like
Banding is a visible line pattern across a printed image. In most wide-format inkjet printers, the lines run perpendicular to the carriage travel, typically as horizontal stripes across the width of the print. They may be light, dark, colored, evenly spaced, or random.
Light or white lines usually point to missing nozzles, restricted ink flow, or insufficient ink density. Darker lines and repeating stripes can indicate pass alignment problems, media advance errors, or a print mode that is too fast for the material and image content. Fine banding may only show in solid color fields, gradients, skies, photographic shadows, or large areas of black. That is why a quick logo test can look acceptable while a full wall graphic or photo panel does not.
If you operate a cutting plotter rather than a printer, marks that look like bands may be caused by inconsistent downforce, worn grit rollers, tracking issues, or material damage. True banding is primarily a printing issue, so confirm whether the defect appears in the printed image, the cut path, or both before troubleshooting.
Why Is My Plotter Banding? Start With the Nozzle Check
A nozzle check is the most useful first diagnostic because it separates ink delivery problems from mechanical and profile-related issues. Print the nozzle test using the printer's maintenance menu and inspect each color channel closely. Look for broken lines, gaps, weak sections, or a missing color.
A few missing nozzles can create visible banding in a high-density blue, gray, black, or red area. Severe loss across one channel can cause broad color shifts as well as lines. If the nozzle check is incomplete, run the manufacturer-recommended normal cleaning cycle, then print another check. Do not jump immediately to powerful cleaning cycles. Aggressive cleaning consumes substantial ink, can fill maintenance tanks faster, and may not solve a head that has dried ink, contamination, or a failing ink path.
If normal cleaning does not improve the pattern after a reasonable number of attempts, inspect the practical causes: cartridge or ink bag status, bulk-ink system connections where applicable, dampers, capping station condition, wiper condition, and the printhead itself. On professional equipment, a dirty cap top or worn wiper can prevent the head from sealing correctly during maintenance. The result is recurring nozzle loss even after cleaning.
A clean nozzle test does not fully rule out a head issue. Some printheads drop out only during longer production runs, especially when high-coverage files demand sustained ink flow. When that happens, print a larger color test and watch whether the defect begins at a consistent distance into the job.
Check Printhead Alignment and Media Advance
When the nozzle check is clean but the bands are evenly spaced, calibration becomes the leading suspect. Wide-format printers place ink in multiple passes. If those passes do not line up precisely, the image can show dark-light striping, graininess, fuzzy edges, or subtle color variation.
Run the printer's bidirectional alignment or printhead alignment procedure according to the model's service instructions. Bidirectional printing improves speed, but alignment errors are more visible in detailed graphics, thin lines, and high-contrast production work. A unidirectional test print can be useful here. If the defect disappears in unidirectional mode, carriage alignment or bidirectional calibration deserves attention.
Media advance calibration is equally important. The printer must feed the material forward by an exact amount between carriage passes. Slight feed errors create regular bands that often become more visible on long runs. Vinyl, banner, paper, canvas, film, and backlit media do not all advance the same way. Changes in thickness, coating, liner, temperature, humidity, and tension can alter how the material moves through the printer.
Use the feed adjustment or paper advance calibration for the loaded media. On some systems, this is built into the media preset or profile; on others, it is a manual adjustment. Do not use a calibration created for coated paper on cast vinyl or banner. The printer may be mechanically sound but still produce poor output because the active preset does not match the material.
Match the Media, Ink, and Print Profile
A wrong media profile can produce banding even when the printer is clean and calibrated. The profile controls ink limits, pass count, heater settings, resolution, carriage speed, vacuum, and color behavior. Those settings determine how ink lands, spreads, dries, and cures on a specific surface.
Too much ink can cause pooling, coalescence, and uneven density that resembles banding. Too little ink can leave thin, washed-out passes. A low-pass, high-speed production mode may be appropriate for temporary event banners viewed from a distance, but it may reveal lines in indoor graphics, photography, fine art, or close-viewed retail signage.
Before changing hardware settings, verify the selected media type in both the printer panel and RIP software. Confirm that the profile is designed for the exact media family, ink set, and resolution you are using. Generic profiles can be productive for test work, but a quality profile is worth the time when color consistency and smooth gradients affect the sale.
Also check environmental conditions. Solvent, eco-solvent, latex, UV, aqueous, and dye-sublimation systems each respond differently to temperature and humidity. Media that has absorbed moisture, sat in a cold warehouse, or was loaded immediately after being brought into a hot print room can behave unpredictably. Let media acclimate, keep rolls stored correctly, and make sure heaters and fans are operating as intended.
Inspect Mechanical Causes Before Replacing Parts
Banding is not always a printhead problem. A contaminated encoder strip can interfere with carriage positioning and create inconsistent pass placement. Dirty pinch rollers, low vacuum, worn feed rollers, loose media, or a roll loaded off-center can affect media advance. On older production printers, worn bearings, drive components, or belt issues may show up as repeating mechanical defects.
Start with basic inspection and cleaning using the procedures approved for your model. Look for ink mist, dust, adhesive residue, paper fibers, and debris around the platen, encoder strip area, pinch rollers, and carriage path. Do not use unapproved chemicals or aggressively scrub delicate components. A damaged encoder strip or printhead can turn a maintenance issue into an expensive repair.
Pay attention to whether the banding repeats at a fixed interval. A consistent interval can point to a feed roller, encoder, carriage, or media advance pattern. Random bands that change from print to print are more likely tied to nozzle performance, ink flow, static, media condition, or an intermittent mechanical issue.
Use a Controlled Test Instead of Guessing
Change one variable at a time. Print a nozzle check, a solid-color test, and a gradient using the same media and profile. Then document the result after each adjustment. This protects production quality and prevents a shop from chasing several possible causes at once.
A practical test sequence is to confirm ink and nozzle status, clean only as needed, verify the media preset and RIP profile, run alignment and feed calibration, then test a slower or higher-pass mode. If output improves at higher pass counts but still fails at standard production speed, the machine may need deeper calibration, maintenance, or service rather than a permanent speed reduction.
Do not overlook the RIP file. High-resolution images with very smooth gradients can expose limitations that a basic test image will not. Test the same file from a known-good profile and compare it with a standard printer test chart. If only one application, queue, or file produces the problem, review resolution, color management, screening, and RIP settings before servicing the printer.
When Banding Needs Professional Service
Call for technical support when nozzle loss repeatedly returns, an alignment routine cannot be completed, ink is not drawing correctly, error messages accompany the defect, or mechanical noises and carriage faults appear during printing. Continuing to run a printer with an ink delivery failure or damaged maintenance station can create more downtime and may risk printhead damage.
For shops that rely on daily production, keeping common consumables and maintenance parts on hand is often less expensive than losing a vehicle wrap deadline, construction plan set, or banner installation. Wide Image Solutions supports professional workflows with wide-format equipment, inks, parts, media, and service resources suited to production environments where uptime matters.
The best next move is simple: print a nozzle check before your next job, save a clean reference copy, and use it as the baseline for every future quality issue. That small habit makes banding easier to diagnose before it becomes visible on a customer's finished work.
