A UV printer comparison should begin at the loading table, not with a spec sheet. The right machine is the one that prints the substrates your customers actually order, fits your production volume, and can be maintained without creating avoidable downtime. A print shop producing rigid retail displays has different priorities than a sign company running corrugated boards, aluminum composite panels, decals, and occasional specialty jobs.
UV technology gives commercial producers a major advantage: it prints directly onto a wide range of rigid and flexible materials, then cures ink immediately with UV light. That creates durable, high-impact output while eliminating several mounting or transfer steps. The trade-off is that UV printers vary significantly in table design, ink configuration, printhead technology, workflow requirements, and cost of ownership.

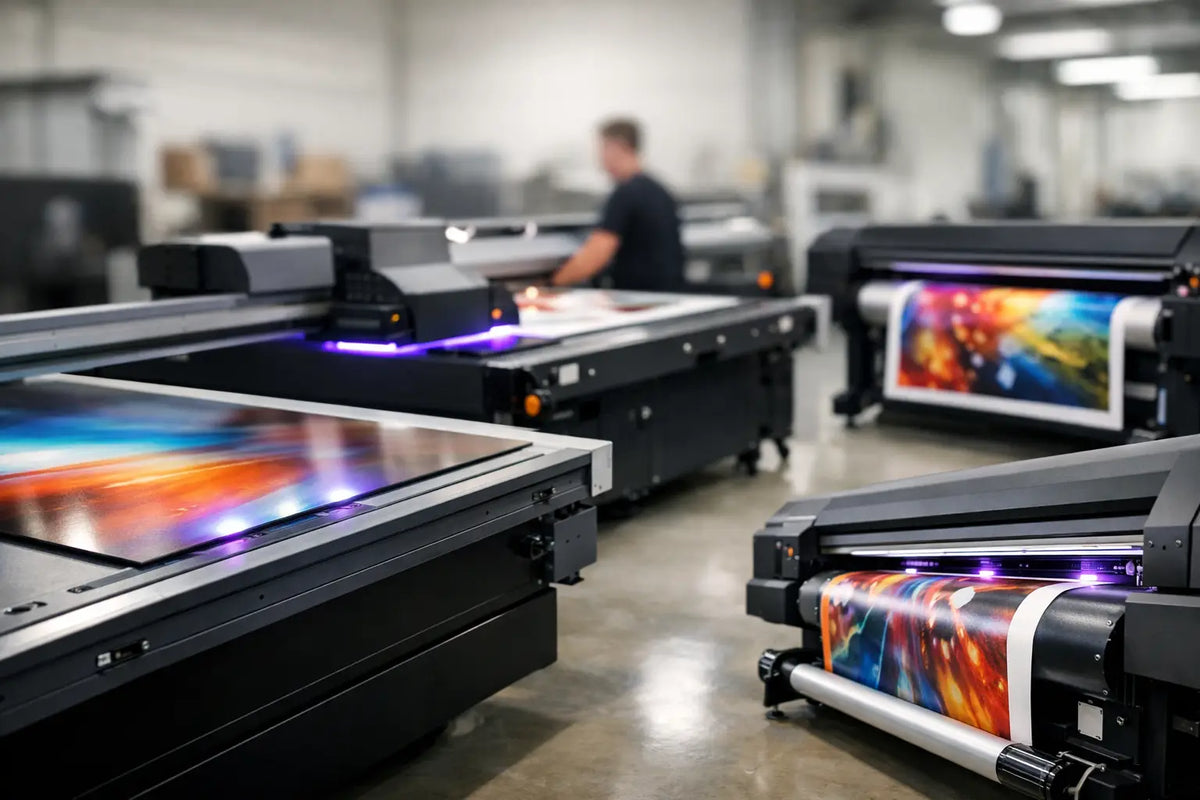

UV Printer Comparison: Start With Printer Type
The first decision is whether your operation needs a flatbed, hybrid, or roll-to-roll UV printer. Each category can produce professional results, but they are built for different production environments.
Flatbed UV printers
Flatbed UV printers are the primary choice for shops that print directly to rigid media. Boards remain stationary on a vacuum table while the carriage moves across the surface. This format is well suited for corrugated plastic, foam board, acrylic, wood, aluminum composite material, glass, PVC, tile, and specialty display materials.
A true flatbed delivers excellent registration because the substrate is held in place during printing. It is especially effective for short-run signs, point-of-purchase displays, architectural panels, personalized products, and jobs requiring white ink or layered effects. The main consideration is footprint. A production flatbed requires dedicated floor space for the machine, loading, unloading, material staging, and operator access.
Flatbeds also need a realistic assessment of handling labor. If your team is manually loading heavy 4-by-8-foot panels throughout the day, production speed is not determined by carriage speed alone. Tables, lift systems, board carts, and a clear workflow around the printer can make a substantial difference in output.
Hybrid UV printers
Hybrid UV printers combine a flatbed-style carriage with a belt or media transport system. They can handle certain rigid sheets while also printing flexible rolls, making them a practical fit for shops with mixed work. A sign business that produces rigid signage on weekdays and banners or backlit film for retail programs may benefit from this flexibility.
The advantage is versatility without purchasing two separate machines. The compromise is that hybrid loading and alignment can be more operator-dependent than a dedicated flatbed. Thin, warped, or irregular boards may require extra attention, and very high-volume rigid-board production can be more efficient on a true flatbed with a stronger vacuum system.
Roll-to-roll UV printers
Roll-to-roll UV printers are designed for flexible media such as vinyl, banner material, window film, wallpaper, canvas, and certain textiles. For shops focused on graphics, promotional banners, decals, floor graphics, and vehicle-related applications, this format can provide consistent output with less physical board handling.
UV roll printing offers fast curing and durable ink performance, but the media must be compatible with the ink and curing profile. Some flexible materials can show curl, edge lift, or visible banding if tension, heat, vacuum, or pass settings are not properly controlled. Operators should test the actual films, banners, and laminates used in daily production rather than relying only on a manufacturer’s media list.
Compare Applications Before Speed Ratings
A published square-feet-per-hour number is useful, but it rarely reflects a full production day. Draft modes can be impressive on paper while being unsuitable for close-viewed retail graphics, photographic panels, or corporate branding work. A better evaluation compares usable speed at the quality level your customers will approve.
For standard outdoor signage viewed from several feet away, a lower pass count may meet expectations and keep turnaround times competitive. For interior décor, museum displays, fine art reproduction, or product packaging prototypes, higher resolution and smoother gradients may justify slower production. The right benchmark is sellable output per shift, including setup, loading, test prints, maintenance, finishing, and reprints.
Ask how the printer performs on the jobs that generate the most revenue. A shop that sells large runs of 4-by-8-foot boards should evaluate board throughput, vacuum hold-down, multi-zone table capability, and loading workflow. A company specializing in smaller promotional items should focus on media clearance, jig options, white ink consistency, and repeatability across many pieces.
Print Quality Depends on More Than Resolution
Resolution figures do not tell the full story. Printhead drop size, ink formulation, carriage design, pass count, color management, and operator skill all affect final quality. Fine text, smooth tonal transitions, dense solids, and sharp edges are better real-world comparison points than a maximum dpi claim.
White ink deserves special attention. It is essential for printing clear acrylic, dark substrates, metallic surfaces, and layered graphics. It can also be one of the most demanding channels to maintain. White pigment settles, so recirculation, agitation, scheduled nozzle checks, and proper daily maintenance matter. A printer with white ink should fit your actual job mix, not be selected simply because the feature is available.
Varnish or clear ink can add value through gloss effects, texture, tactile details, or protective layers. It is most profitable when your sales team can position dimensional and premium graphics as a higher-margin service. If the majority of your work is basic yard signs and short-term graphics, the added channels may not justify their cost or complexity.
Substrate Range and Media Clearance Matter
UV printers are often marketed as direct-to-substrate solutions, but every machine has limits. Review maximum media thickness, table dimensions, vacuum zones, accepted substrate weight, and the ability to print edge-to-edge. These details determine whether the printer can support your current products and future opportunities.
Media clearance is critical for shops considering wood items, packaging prototypes, promotional products, cabinet components, or textured materials. A machine that handles only thin board stock may be excellent for signage but unsuitable for product decoration. Conversely, a high-clearance printer may cost more than a shop needs if nearly all work is flat, standard-size panels.
Ink adhesion also varies by material. UV ink can print on many surfaces, but difficult substrates such as certain plastics, powder-coated metals, glass, and silicone-treated materials may require primers, pretreatment, special ink sets, or adhesion testing. For exterior graphics, evaluate scratch resistance, weathering expectations, and whether a clear coat or laminate belongs in the workflow.
Calculate Ownership Cost, Not Just Purchase Price
A UV printer is a production asset with ongoing costs beyond the equipment price. Ink consumption, replacement lamps or LED components, printheads, maintenance fluids, electricity, RIP software, ventilation considerations, labor, and service response all affect profitability.
LED UV curing typically offers lower energy use and less heat than older lamp systems, which can be beneficial for heat-sensitive materials and shop operating costs. However, the best choice still depends on the specific printer platform, inks, media, and production requirements. Do not assume an LED system automatically delivers lower total cost per print without reviewing maintenance and ink consumption data.
Refurbished professional equipment can be a strong value for a growing shop when it has been properly inspected, supported, and backed by a clear warranty. It can free up capital for a cutter, laminator, tables, RIP software, inventory, and the operating cash needed to build new applications. The key is confirming parts availability, technician support, software compatibility, and the condition of high-wear components before purchase.
Protect Uptime With Service and Workflow Planning
UV printheads are precision components. Skipping daily checks, allowing ink to dry at the nozzle plate, using unsuitable cleaning procedures, or delaying minor maintenance can turn a manageable issue into costly downtime. The strongest machine investment is supported by a disciplined maintenance routine and ready access to consumables and technical guidance.
Before purchasing, define who will operate the printer, who will handle routine maintenance, and how jobs will be prepared. File setup, color profiles, bleed, nesting, white-layer construction, and material handling should be standardized before production volume increases. This is where an equipment partner with supplies, parts, workflow knowledge, and service resources can reduce unnecessary trial and error.
Wide Image Solutions helps production businesses evaluate equipment as part of a complete workflow, including media, inks, finishing equipment, and support needs. That approach matters because a UV printer must earn revenue after installation, not simply look capable on a showroom floor.
Choose for the Jobs You Want to Win
The best UV printer is rarely the model with the longest feature list. It is the machine that lets your team quote profitable work confidently, produce repeatable color and adhesion, and keep moving when deadlines tighten. Build your comparison around the materials, sizes, finish requirements, and daily volume that define your shop, then choose the platform that gives those jobs the most dependable path from file to finished product.
