A faint band through a vehicle wrap panel or missing detail in a CAD plot is rarely just a cosmetic issue. It can signal nozzle loss, poor ink delivery, or contamination at the printhead. This printhead cleaning guide helps production operators restore output without turning a routine maintenance task into an expensive printhead replacement.
For wide-format shops, the right response is not always a more aggressive cleaning cycle. Every cleaning consumes ink, creates downtime, and may add wear to the capping station, wiper, and pump system. The goal is to identify the actual cause, use the lightest effective maintenance step, and verify the result before sending another job to the printer.
Start With a Nozzle Check, Not a Cleaning Cycle
Print a nozzle check or test pattern before taking any action. This gives your team a baseline and separates a true printhead issue from a media, profile, or file problem. Look for missing nozzles, deflection, weak channels, or repeated gaps in a specific color.
A few isolated missing nozzles after a period of idle time may clear with a standard cleaning. Consistent gaps in the same channel, however, can point to dried ink, air in the ink line, a restricted damper, a failing cap top seal, or a printhead approaching the end of its service life. If multiple colors fail at once, inspect the maintenance station before assuming several printheads have failed simultaneously.
Keep a simple record of the test pattern, cleaning level used, ink set, and result. This is especially valuable on high-volume solvent, latex, UV, and aqueous systems, where repeated symptoms can reveal a maintenance component that needs replacement.
Printhead Cleaning Guide: Use the Right Escalation Path
Most professional printers provide several automated cleaning levels. Names vary by manufacturer, but the operating principle is the same: begin with the least invasive option and move up only when the nozzle check supports it.
Run a normal or light cleaning first, then print another nozzle check. If the pattern improves but does not fully recover, allow the printer to sit for the manufacturer-recommended period and repeat the standard process once. A partial improvement often indicates that ink is beginning to move through a restricted nozzle path.
If there is no improvement, use the printer's medium or powerful cleaning only when the service documentation permits it. A powerful cleaning can recover stubborn nozzle loss, but it also uses substantially more ink and may pull air through a weak cap top, damper, or ink connection. Repeating high-power cleans several times is not a maintenance strategy. It is a sign to inspect the ink delivery and maintenance system.
For printers with automated nozzle compensation, enable it when appropriate for production. Compensation can keep a deadline-critical sign or banner moving while you schedule maintenance, but it does not correct the underlying nozzle issue. Do not let compensation mask a pattern of declining print quality.
Inspect the Maintenance Station Before Cleaning by Hand
The capping station is central to printhead health. When the printer parks, caps seal against the printhead face to prevent ink from drying. During cleaning cycles, the system relies on those caps, pumps, tubes, and wipers to draw ink correctly.

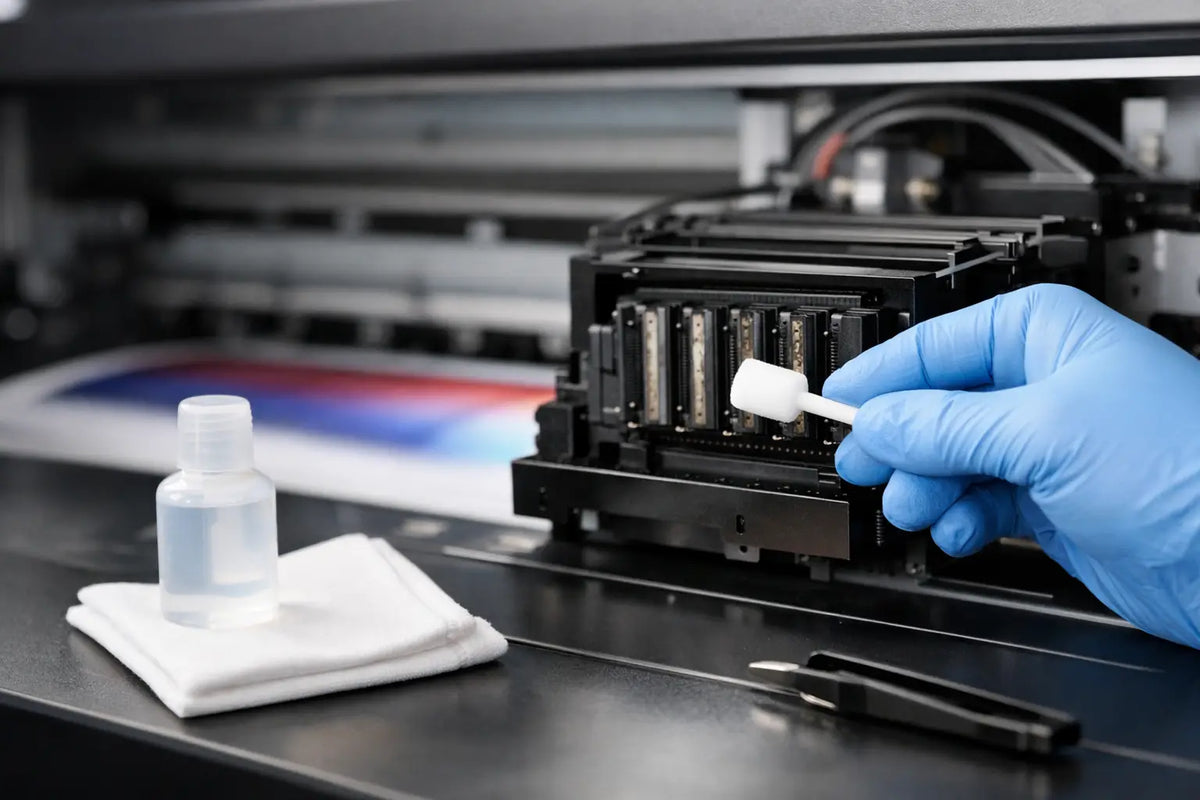

With the printer powered and positioned according to the manufacturer service procedure, inspect the cap tops for dried ink, warping, tears, or poor seating. Check that the wiper is clean and not bent, frayed, or saturated with debris. Examine the flushing pad, waste tubing, and surrounding area for ink buildup that could interfere with movement or suction.
Use only approved cleaning fluid and lint-free swabs or wipes specified for the printer and ink chemistry. Ordinary shop rags can shed fibers, while the wrong solvent may swell seals, damage coatings, or react with ink. Never scrape a printhead face, press hard against nozzle plates, or pour cleaning fluid directly into components unless the manufacturer specifically directs that procedure.
This matters even more on piezo printheads used in many commercial wide-format platforms. Their nozzle plates and protective surfaces require careful handling. A manual wipe may remove surface contamination, but it will not fix an electrical failure, damaged nozzle plate, or failed ink channel.
Match Your Cleaning Method to the Ink Technology
The printer's ink type determines what is safe and effective. Aqueous pigment and dye systems can dry quickly when idle, especially in low-humidity environments. Solvent and eco-solvent printers face additional issues from pigment settling, cap top contamination, and aggressive ink residue around the maintenance station. UV printers may require close attention to ink handling, circulation, and approved flushing procedures, while latex printers depend heavily on following the built-in maintenance routines and specified consumables.
Do not transfer cleaning habits from one platform to another. A fluid approved for an eco-solvent machine may not be appropriate for an aqueous photo printer. Likewise, a generic online cleaning kit can create more risk than value when it does not match the printhead, ink family, tubing, seals, and service process in your equipment.
Thermal printheads and piezo printheads also fail differently. Some thermal systems use user-replaceable printheads, making replacement a practical solution once diagnostics confirm permanent nozzle loss. Piezo heads are often designed for longer service life and may be more expensive to replace, so accurate diagnosis and preventive maintenance carry greater value.
Know When the Problem Is Not the Printhead
Banding can look like a clogged nozzle, but production variables matter. Before taking the printer offline for manual work, confirm that the media is loaded correctly, the platen is clean, the vacuum setting is appropriate, and the selected print mode matches the job. Fast production modes, low pass counts, incorrect media profiles, and bi-directional alignment errors can all create visible banding even when the nozzle check is clean.
Color shifts deserve the same discipline. If a specific color appears weak, inspect ink levels, cartridge or bag status, expiration dates, agitation requirements, and line connections. White ink, metallic ink, and other specialty formulations often require more frequent circulation or agitation. An ink supply issue will not be corrected by repeatedly cleaning the printhead.
Environmental conditions can also accelerate clogs. Excessive heat, low humidity, dust, and long idle periods increase the chance of nozzle loss. Shops that run intermittent work should follow parking, shutdown, and weekly maintenance procedures rather than leaving a printer unused until the next rush order.
Build Cleaning Into a Production Maintenance Plan
Reliable output comes from routine care, not emergency recovery. Operators should print a nozzle check at the start of critical runs, especially before long unattended production. Clean the exterior media path and platen on schedule, maintain the approved humidity range, and keep ink and maintenance consumables within their recommended storage conditions.
Your maintenance plan should also include regular inspection of wipers, cap tops, dampers, flushing pads, waste bottles, and air filters where applicable. These parts are less visible than a printhead, but they directly affect ink flow, cleaning performance, and print quality. Replacing a worn cap top at the right time can protect a far more costly printhead.
Use genuine or manufacturer-approved inks and maintenance fluids whenever possible. Lower-cost alternatives may appear attractive, but incompatible viscosity, pigment behavior, or chemical composition can affect nozzle performance and complicate service decisions. For revenue-producing equipment, the real cost is not the price of a cleaning cartridge. It is the lost production time, material waste, and reprints caused by unstable output.
When to Stop Cleaning and Call for Service
Stop escalating cleaning cycles when the nozzle pattern does not improve, when a channel drops out completely, or when ink is leaking, pooling, or drawing air. Continuing to clean can waste ink and delay the repair that actually resolves the problem.
Service is also the right next step when the printer reports a printhead error, fails to recognize a head, shows recurring ink system warnings, or produces the same defect after maintenance station components have been inspected. A qualified technician can test suction, inspect dampers and lines, verify electrical connections, and determine whether replacement is necessary.
