A plotter that misses a deadline rarely fails without warning. Banding on a construction set, faded color in a presentation board, paper skew during an overnight run, or recurring cartridge alerts usually point to maintenance that was delayed or handled inconsistently. Knowing how to maintain HP plotter equipment gives your shop a better chance of protecting output quality, controlling service costs, and keeping billable production on schedule.
HP DesignJet and PageWide plotters are built for demanding CAD, GIS, technical-document, poster, and graphics workflows. They still depend on the right environment, clean media handling, current supplies, and the machine's built-in maintenance routines. The exact steps vary by model, ink type, and workload, so use the operator manual and front-panel prompts as the final authority. The following routine covers the practices that matter most in professional production.
Start With a Maintenance Schedule That Matches Production
A plotter used for a few construction drawings each week needs a different schedule than a busy print service provider producing sets, posters, and presentation graphics every day. The mistake is treating maintenance as something to do only after print quality drops. By then, a small issue may have already created wasted media, missed turnaround times, and unnecessary ink consumption.
For most active HP plotters, perform a quick visual check at the start of each shift and a more thorough inspection weekly. Schedule deeper cleaning and firmware review monthly, or sooner if the equipment runs long unattended jobs, operates in a dusty area, or handles heavy coated-media volume.
A useful operator routine includes four checks:
- Confirm there are no active errors, warning messages, or supply alerts on the front panel.
- Inspect loaded media for edge damage, curl, moisture exposure, or improper roll alignment.
- Review print quality before releasing a time-sensitive job.
- Check the printer area for dust, scraps, spilled ink, and blocked ventilation.
Keep the Printheads Healthy
Printhead condition has the greatest direct effect on line accuracy, color consistency, and solid-area coverage. On many HP plotters, the printer automatically monitors printhead performance and starts cleaning or servicing cycles when needed. Let those cycles finish. Interrupting them to save a few minutes can leave nozzles partially recovered and can cause repeat defects across the next job.
Run the printer's print-quality diagnostic when you see banding, broken lines, grainy fills, unexpected color shifts, or text that does not look as sharp as normal. Use the built-in cleaning procedure before assuming a printhead needs replacement. One cleaning cycle may resolve a minor nozzle issue; repeated cycles with no improvement may indicate a worn printhead, contaminated service station, incorrect media setting, or an ink supply problem.
Avoid manual contact with the nozzle plate or electrical contacts. If a printhead must be removed, follow the model-specific procedure and handle it only by the designated grips. Oils from hands, paper fibers, and dried ink can create problems that are harder to diagnose than the original defect.
It also pays to keep genuine, compatible supplies on hand for machines that support replaceable printheads. Waiting until a head fails during a rush order puts production at risk. For lower-volume operators, do not stock more consumables than you can use within their recommended storage period.
Do Not Power Down the Wrong Way
Use the plotter's power button and allow its shutdown sequence to complete. Pulling power at the outlet or switching off a power strip can prevent the printer from parking the carriage and protecting the printhead system properly. That shortcut may save seconds at closing time but can contribute to nozzle problems when the unit sits overnight or over a weekend.
If the plotter will be idle for an extended period, follow HP's storage or extended-idle guidance for that specific model. Some devices need to remain connected to power so they can complete automatic service routines. Others may require a formal preparation process before transport or long-term storage.
Control Ink, Paper, and Media Conditions
Ink and media are part of the maintenance plan, not separate purchasing decisions. Use the ink family specified for the exact HP plotter model. Mixing cartridge types, installing expired inventory, or using questionable third-party supplies can create color inconsistency, recognition errors, leaks, and avoidable damage to the ink delivery system.
Store cartridges upright when required, within the recommended temperature range, and away from direct sunlight. Give a cartridge time to reach room temperature if it has been delivered during extreme heat or cold. Installing supplies immediately after they have sat in a delivery truck can affect reliability.
Media deserves the same attention. Keep rolls in their original packaging until they are needed, store them in a stable indoor environment, and protect them from humidity and dust. Moisture can cause cockling, head strikes, poor ink adhesion, and inaccurate line work. Dry conditions can increase static, which attracts dust and can interfere with sheet handling.
When loading a roll, make sure the edges are clean and even. Confirm the roll is seated correctly, the spindle is secure, and the printer recognizes the proper media type. Selecting plain paper when printing on coated bond, photo paper, polypropylene, or another specialty material can lead to poor dry time, wrong ink limits, and disappointing color.
Clean the Areas That Affect Media Travel
Paper dust and coating residue build up slowly, especially in high-volume CAD and graphics environments. Over time, that buildup can contribute to feed issues, skew, marks on prints, and debris on the platen. The goal is not to disassemble the machine for routine cleaning. It is to keep accessible areas clean without touching sensitive components.

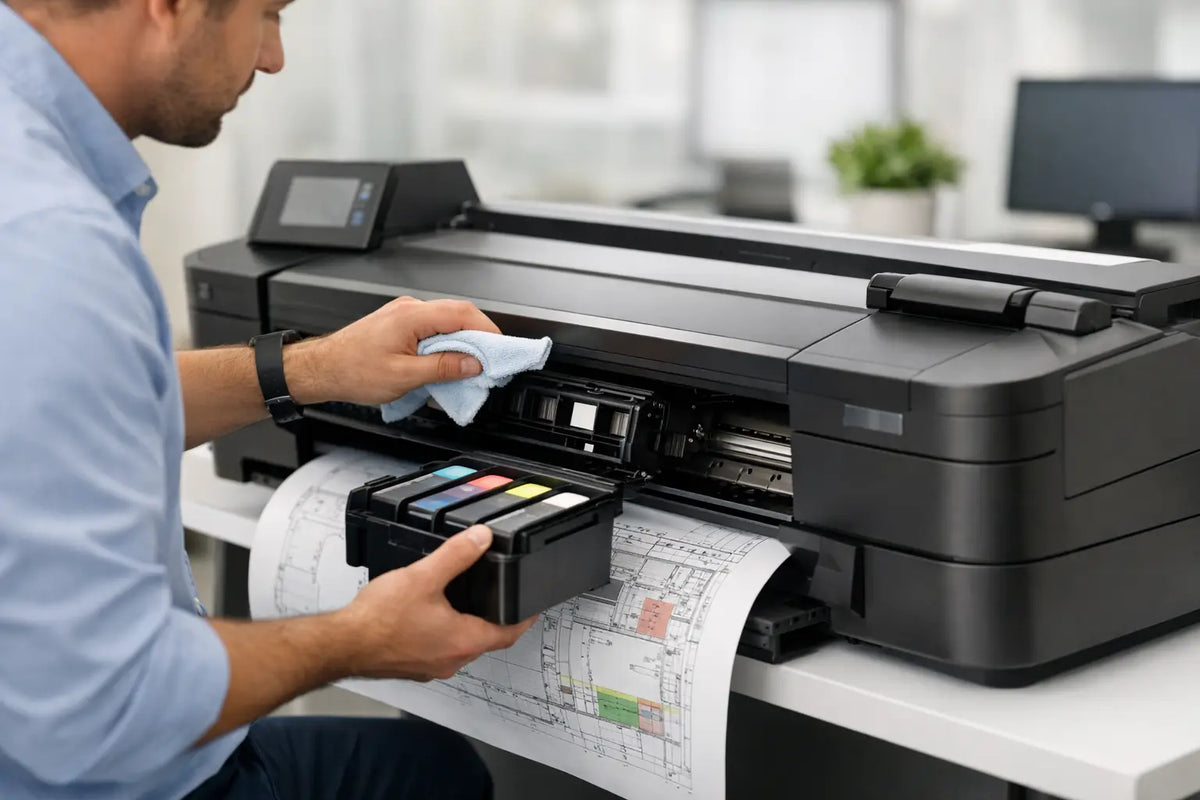

With the plotter powered down according to the approved procedure, use a soft lint-free cloth to remove loose dust from exterior surfaces, accessible media paths, and the output area. Do not use aggressive solvents, compressed air, or soaking-wet cloths inside the printer. Compressed air often pushes debris farther into sensors and mechanical areas where it can cause more trouble.
Inspect the platen and output path for small paper fragments, adhesive residue, cut media scraps, or anything that could contact the print surface. In shops that print construction documents, keep trimming, folding, and finishing work away from the plotter's media path. In sign and graphics environments, be especially careful with adhesive-backed materials, liners, and dusty canvas or fabric media.
Verify Calibration Before It Becomes a Quality Problem
Calibration is not a one-time setup task. Media changes, printhead replacement, environmental shifts, and long production cycles can all affect output. If your work depends on accurate color, fine lines, or consistent scaling, build calibration checks into your operating procedures.
For CAD users, confirm that line weights, scaling, and page dimensions match the job requirements. A plotter can be mechanically sound yet still produce costly mistakes if the driver, application, or media settings are wrong. For graphics, photography, and presentation output, use the appropriate media preset and color workflow. ICC profiles, application settings, and printer driver settings must agree, or color results will vary from one job to the next.
Do not calibrate simply because a job looks wrong. First verify the correct media selection, inspect the print-quality diagnostic, and rule out a damaged or outdated file. Calibration is valuable, but it cannot correct a clogged nozzle or an incorrect print mode.
Keep Firmware, Drivers, and Network Settings Current
Firmware updates can resolve known errors, improve compatibility, and refine printer behavior. Before updating a production plotter, review the release notes, confirm the model, and avoid performing the update in the middle of a deadline-sensitive shift. A stable network connection and uninterrupted power are essential.
The same discipline applies to drivers and workflow software. If a workstation update suddenly changes margins, color, page nesting, or roll selection, check the driver version and default print settings before blaming the plotter. Save proven presets for common workflows such as 24-inch and 36-inch plan sets, presentation boards, photo output, and short-run graphics.
For networked equipment, assign a predictable network configuration when practical and document the printer's IP address, installed options, supply part numbers, and service history. This makes remote troubleshooting faster and reduces downtime when a new operator or IT provider needs to support the device.
Know When Cleaning Is Not Enough
Operators can handle routine care, diagnostics, approved cleaning, media loading, and supply replacement. Mechanical repairs, persistent ink-system errors, carriage faults, repeated paper jams, and unexplained leaks should be escalated. Continuing to run a plotter with a grinding carriage, damaged belt, recurring head strike, or persistent error code can turn a manageable repair into a larger equipment problem.
Record the error code, take a photo of affected output, note the installed media and ink status, and document what maintenance steps were already completed. That information gives a service technician a much better starting point. It also helps identify patterns, such as a defect that appears only on one roll width, one workstation, or one specific print mode.
A well-maintained HP plotter is not just cleaner - it is easier to schedule, easier to troubleshoot, and more dependable when a customer needs drawings, signs, or presentation graphics without delay. Treat maintenance as part of production control, and your equipment will be better positioned to deliver the precision and uptime your business sells.
