A vehicle wrap can look perfect coming off the printer and still fail at the laminator. Silvering, trapped debris, tunnel marks, adhesive lift, and stretched graphics often begin before the print ever reaches the application table. Knowing how to laminate wrap prints correctly protects the color, finish, and conformability your customer expects while reducing expensive reprints and installation callbacks.
For most professional vehicle graphics, lamination is not a cosmetic add-on. It is part of the system. The print film, ink set, overlaminate, laminator settings, and installer technique all need to work together. A fast pass through the machine may save a few minutes, but it can create defects that become obvious under sunlight or once the vinyl is stretched around a bumper, rivet, or deep channel.
Start With a Matched Print and Laminate System
The most reliable wrap jobs begin with compatible materials. Use a cast printable wrap film with a cast overlaminate when the graphic will be installed on compound curves, corrugations, or recessed areas. Cast films are designed to remain stable and conformable. A calendered laminate over a cast print may look acceptable on a flat panel, but it can restrict the film's movement and increase the chance of lifting or failure on demanding vehicle surfaces.
Match the laminate finish to the print film and the customer's intended appearance. Gloss laminate typically delivers the strongest color pop and depth. Matte finishes reduce glare and can hide minor surface imperfections, while luster options provide a middle ground. Beyond appearance, check that the laminate is rated for the same outdoor life and application type as the printable vinyl.
This matters especially when prints will see heavy handling, frequent washing, road grime, or intense UV exposure. The laminate is the wear layer protecting the ink, but it cannot compensate for an incompatible or low-performance base film.
Let Solvent and Latex Wrap Prints Stabilize
Before laminating, the print needs adequate time to stabilize. With solvent, eco-solvent, and UV-curable workflows, this step is often described as curing or outgassing. The goal is to allow residual solvent and moisture to leave the printed film before the laminate seals the surface.
If you laminate too soon, remaining solvent can interfere with adhesive performance. That can lead to bubbles, edge lift, adhesive discoloration, or reduced durability over time. Dry-to-the-touch is not the same as fully ready for lamination.
The exact wait time depends on ink technology, ink density, heater settings, media, humidity, and print coverage. Follow the film and ink manufacturer's published recommendations first. As a practical production standard, heavily saturated solvent and eco-solvent wrap prints commonly need a meaningful resting period in a clean, temperature-controlled area. Avoid tightly winding freshly printed graphics if they still carry noticeable solvent odor or feel unusually soft.
Latex prints generally move through production faster because they exit the printer dry, but they still need to cool and flatten before lamination. Heat-related curl can make feeding difficult and create uneven pressure at the nip. UV prints also require care because heavy ink deposits can have a textured surface that traps air under the overlaminate.
Prepare the Laminator Before Loading Material
A cold-roll pressure-sensitive laminator is the standard choice for self-adhesive wrap films. The machine must be clean, aligned, and set up with even pressure from one side of the roller to the other. A dirty roller, worn silicone surface, or uneven gap can telegraph defects directly into the finished graphic.
Before running production, inspect the rollers and clean them with a manufacturer-approved cleaner. Remove adhesive residue, dust, and dried ink particles. Check that the brake on the laminate supply roll applies light, consistent resistance. Too little tension can allow the laminate to wander or wrinkle. Too much tension can stretch the laminate, create curl, or pull the print out of registration.
Run a small test piece whenever you change media, laminate type, or job width. A test is faster and cheaper than finding a pressure issue after laminating a full hood, side panel, or fleet graphic.
For consistent results, verify these machine conditions before the full run:
- Roller pressure is even across the full working width.
- The print and laminate rolls are square to the rollers.
- The laminate unwind tension is light and uniform.
- The take-up system, if used, is synchronized and does not pull the finished graphic.

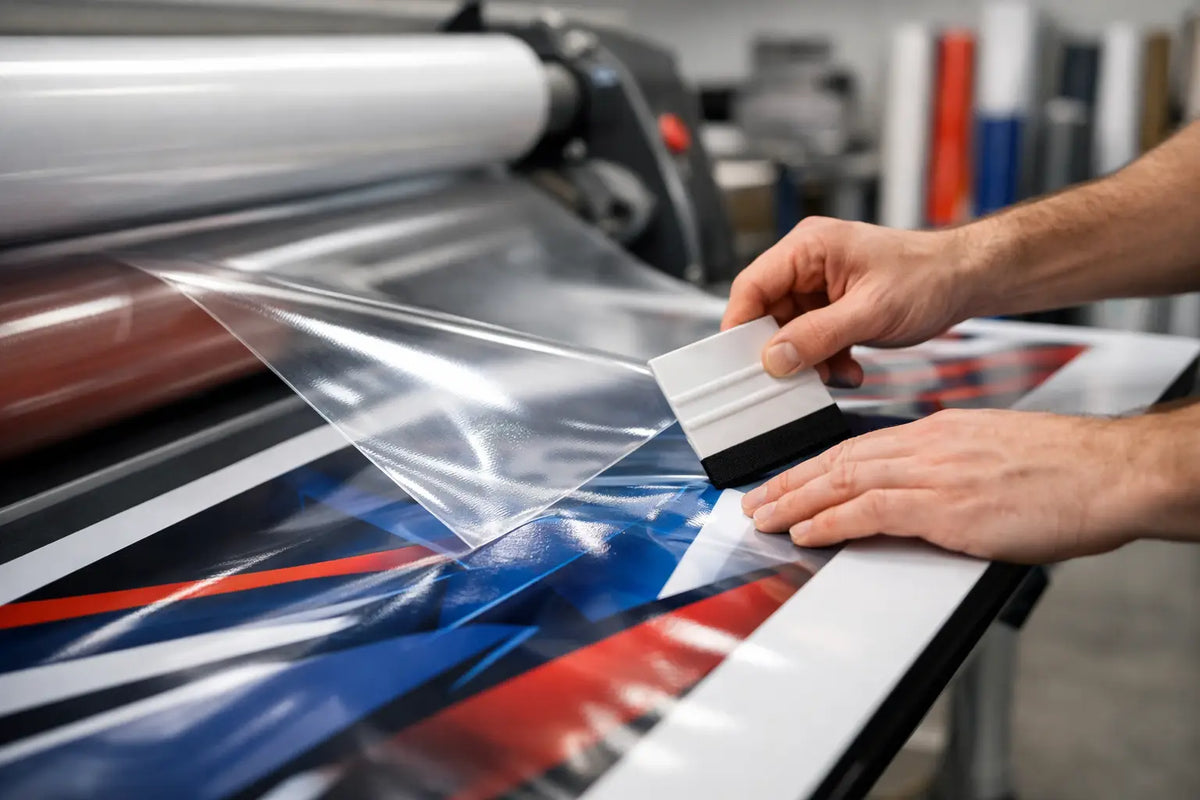

How to Laminate Wrap Prints With a Cold Roll Laminator
Begin by placing the printed wrap film on the feed table with the image facing up. Mount the overlaminate so its adhesive side will meet the printed surface as it passes through the rollers. The release liner should peel back toward the supply roll, not feed into the nip with the laminate.
Pull a short length of laminate forward and create a clean, straight leading edge. Tack that edge to the print using light hand pressure or a squeegee across the full width. Do not begin with a loose corner or partial contact point. That is how wrinkles start traveling across the web.
Set the top roller gap and pressure for the combined thickness of the printed film and laminate. Every laminator behaves differently, so use the manufacturer guidance as your starting point and refine through testing. Excessive pressure can distort softer films or force debris into the surface. Too little pressure can leave small air pockets and weak adhesive contact.
Feed the material slowly and watch the leading edge closely. Keep both the print and laminate aligned as they enter the nip. If the laminate begins drifting to one side, stop immediately, back out if your equipment allows it safely, and correct the roll position. Trying to steer the film by hand while it is under pressure usually creates stretch marks or diagonal wrinkles.
Maintain a controlled pace. Wide-format wrap graphics do not reward speed for its own sake. A smooth, even feed produces better optical clarity and reduces the chance of tunneling, especially with wider rolls or thin cast films.
Control Tension to Prevent Curl and Tunneling
Tension is one of the most common hidden causes of lamination problems. The laminate should have enough resistance to stay flat and stable, but not enough to elongate. Stretching the overlaminate during lamination can cause the finished graphic to curl after it leaves the machine or pull at the print's edges as it relaxes.
If you see long, narrow air channels running in the machine direction, look at roller pressure, web alignment, and laminate tension. These tunnel marks often appear when the laminate is entering the nip unevenly or when the web is not flat. If the laminate wrinkles before reaching the rollers, reduce tension and confirm the supply roll is mounted squarely.
Temperature and humidity also affect the result. Cold media can become stiff and retain curl, while excessive heat can soften the adhesive and make the web harder to control. Store print film and laminate in the production area long enough for both materials to acclimate before use. A stable shop environment supports more repeatable output.
Trim, Rest, and Handle the Laminated Graphic Correctly
After lamination, allow the graphic to rest flat or loosely rolled with the image facing out, depending on the material manufacturer's handling guidance. Avoid sharply folding the laminated film or leaving it under compression where pressure marks can develop.
When trimming, use sharp blades and clean cutting surfaces. A dull blade can drag the laminate and leave rough edges that become starting points for delamination. Keep fingerprints, shop dust, and adhesive scraps away from the face of the graphic. Small contaminants may not show under indoor lighting, but they are obvious on a dark vehicle panel in direct sun.
If the graphic will be contour cut after lamination, confirm that registration marks remain readable and that the cutter settings account for the added thickness. Too much blade force can cut through the release liner; too little can leave uncut laminate strands that slow down weeding and compromise edge quality.
Troubleshoot Before You Reprint
Silvering is usually a contact issue, not an ink issue. It appears as a cloudy or speckled look caused by tiny air gaps between the laminate and print. First inspect roller pressure, then check for textured ink coverage, cold material, or contamination. Some silvering may lessen as the adhesive wets out, but do not assume it will disappear on a high-value job without testing.
Wrinkles and creases typically come from poor alignment, excessive unwind tension, or attempting to correct a wandering web while it is already in the nip. Edge lift can point to insufficient curing, dirty print surfaces, incompatible materials, or aggressive tension that has stressed the laminate. Repeated failures with the same media combination are a signal to review the entire print-and-laminate system, not just the machine setting.
For shops producing wraps every day, a properly sized cold laminator with dependable roller pressure and easy adjustment is a production asset, not an accessory. Wide Image Solutions supports professional print-and-finish workflows with equipment and media options built around real sign, fleet, and vehicle graphics production.
Treat lamination as the final quality-control stage before installation. When the material is cured, the rollers are clean, and tension is controlled, the finished print arrives at the vehicle stable, protected, and ready to perform.
