A 54-inch print can look perfect when it leaves the printer and still become a costly reprint five minutes later. Silvering, wrinkles, trapped debris, edge lift, and stretched graphics usually happen at the laminator, not at the printer. Knowing how to laminate large prints correctly protects your output, reduces material waste, and gives customers the durable finish they expect from professional signage, displays, decals, and wrap graphics.
Large-format lamination is less about forcing a print through a machine and more about controlling the entire finishing workflow. Film selection, ink cure time, roller pressure, web tension, temperature, and handling all affect the result. A reliable process turns lamination into a productive final step instead of a recurring source of reprints.
Start With a Print That Is Ready to Laminate
Do not laminate a print simply because it feels dry to the touch. Solvent, eco-solvent, UV, latex, aqueous, and dye-sublimation inks each behave differently, and the media profile matters just as much as the ink set. If residual solvent or moisture remains in the print, lamination can trap it beneath the film. That may cause bubbles, tunneling, adhesive failure, or a visible change in color over time.
For solvent and eco-solvent graphics, allow adequate outgassing before finishing. The required time depends on ink coverage, media, room conditions, and printer settings. Heavy-coverage vehicle graphics often need more time than a lightly printed indoor sign. Latex and UV prints can often move into finishing sooner, but they still need to cool, flatten, and stabilize before they reach the laminator.
Keep prints in a clean, temperature-controlled area whenever possible. A curled print is harder to feed evenly, while static attracts the dust and fibers that become permanently visible under gloss laminate. If a print has been rolled tightly, give it time to relax before mounting or laminating.
Choose Laminate for the Application, Not Just the Width
The wrong film can make even a well-laminated print fail in the field. Match the laminate to the printed media and the job's end use. A short-term indoor poster does not require the same film as a fleet graphic, textured wall mural, or outdoor construction sign.
For most pressure-sensitive wide-format work, use compatible vinyl and laminate families. Cast vinyl is typically the right choice for vehicle wraps, rivets, curves, and long-term outdoor graphics because it conforms and remains stable. Calendered films are a practical, cost-effective option for flat signs, window graphics, short-term promotions, and general display work. Pairing a cast laminate over an economy calendered print film may look acceptable on the finishing table, but the materials can age and shrink at different rates.
Finish also matters. Gloss laminate increases color pop and provides a polished appearance, but it shows glare and fingerprints more easily. Matte laminate reduces reflection for retail displays, photography, and indoor signage. Luster and satin finishes provide a middle ground. For floor graphics, choose an approved anti-slip overlaminate. For dry erase boards, wall graphics, or specialty applications, use a film designed for that purpose rather than trying to adapt standard sign laminate.
Prepare the Laminator Before Loading the Print
A clean machine is the first defense against contamination. Wipe down the feed table, inspect the rollers, and remove adhesive residue before every production run. A small piece of dried adhesive or vinyl scrap can create a pressure mark across an entire print.
Use a clean liner or release liner to thread the laminate through the machine. Set the film roll so it unwinds straight and centered. If the laminate is mounted off-center, it can walk sideways as it feeds, creating uneven edge margins or wrinkles. Check that the print path is clear and that the take-up system, if used, is aligned with the supply roll.
For pressure-sensitive film, set roller pressure evenly across the full width. Too little pressure can cause silvering and poor adhesion. Too much pressure can stretch the print, distort the image, or leave roller marks on sensitive media. On a heat-assist laminator, begin with the lowest effective temperature. Excessive heat can soften adhesives, warp paper-based prints, or make thin films more difficult to control.
Before processing a high-value job, run a test strip from the same print and laminate combination. This takes only a few minutes and can prevent the loss of a full roll of media.

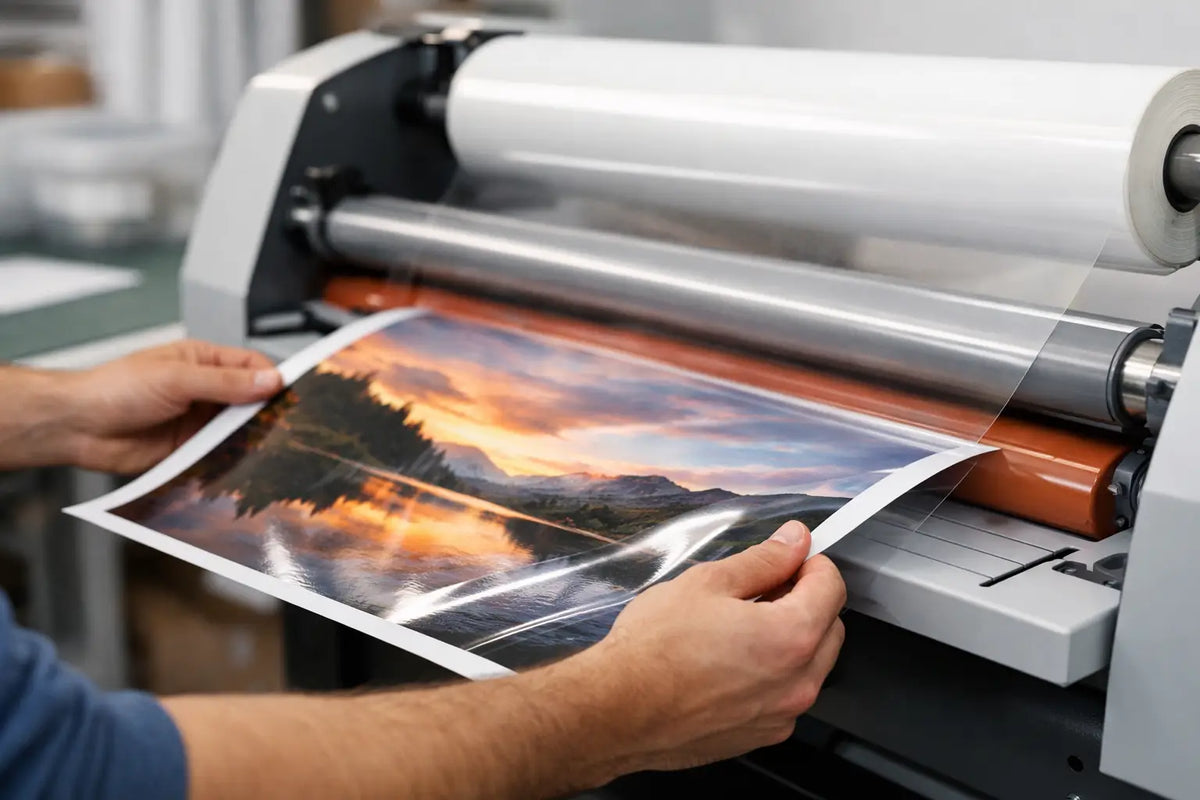

How to Laminate Large Prints With a Roll Laminator
The most consistent method for wide-format graphics is to laminate from a roll laminator with the print supported on a flat feed table. Start by trimming the leading edge of the print square. An uneven leading edge is more likely to enter the nip crooked and create a wrinkle that grows across the panel.
Pull back a short section of the laminate liner and tack the exposed adhesive evenly across the leading edge of the print. Work from the center outward, using a felt squeegee or your hands to prevent air from forming under the initial contact area. Keep the adhesive side from touching the print until you are ready to feed it through.
Position the print square to the rollers, then lower the nip according to the laminator's operating procedure. Feed slowly at first. Watch both outer edges as the print enters. If one edge begins moving faster than the other, stop immediately. Continuing to run a crooked print almost always turns a small alignment issue into a ruined panel.
As the machine pulls the graphic forward, maintain light, even tension on the laminate liner. The liner should be supported, not pulled tight. Excess tension can stretch the laminate and cause curl or edge lift after the print is trimmed. At the same time, do not let the liner bunch beneath the roll, where it can snag and abruptly change tension.
For long prints, use an outfeed table, rewind system, or a second operator. Letting a 10-foot sign drop to the floor can pull the laminate unevenly and introduce wrinkles near the end of the run. Large panels should stay supported from start to finish.
Control Tension to Prevent Wrinkles and Silvering
Most lamination problems come down to tension, pressure, or material compatibility. Wrinkles often occur when the laminate web has more tension on one side than the other, when the print enters the nip at an angle, or when the output has no support. Silvering, the cloudy appearance caused by tiny air pockets, is commonly associated with insufficient pressure, textured media, cold room conditions, or a laminate adhesive that has not fully wetted out.
Do not judge silvering too quickly. Some pressure-sensitive films clear as the adhesive flows over the next 24 to 48 hours. If the effect remains after that period, review roller pressure, laminate choice, and the surface texture of the print media. A heavily textured or low-energy surface may require a more aggressive adhesive system.
If you see a wrinkle forming, stop rather than trying to pull it flat while the rollers are engaged. Release the pressure, carefully back out the material if your laminator allows it, and reset the leading section. Trying to save a severe wrinkle by increasing speed or tension usually makes the damage permanent.
Mounting Large Prints Requires Extra Support
When mounting a laminated print to rigid board, the same alignment rules apply, but the stakes are higher. Foam board, ACM, PVC, acrylic, and other panels do not forgive a crooked start. Begin with a clean substrate. Dust, oil, and chips from cutting can create visible bumps or prevent full adhesion.
Use a hinged application method for smaller boards, or use a production laminator with a properly set mounting adhesive for larger panels. Keep the board square to the rollers and support its full weight as it exits. For oversized rigid panels, two operators are often the difference between a clean mount and a damaged print.
Allow mounted graphics to rest flat before trimming or installing. This gives the adhesive time to settle and helps reveal any areas that need attention before the finished piece leaves the shop.
Common Large-Format Lamination Mistakes
Avoid these production mistakes when finishing large prints:
- Laminating before solvent prints have fully outgassed or before heat-sensitive prints have cooled.
- Using laminate that does not match the vinyl grade, adhesive type, or intended application.
- Feeding a print with a crooked leading edge or an unsupported trailing edge.
- Running excessive pressure, heat, or speed to compensate for a setup problem.
- Handling prints on dusty tables or touching the adhesive side of laminate during setup.
Build a Repeatable Finishing Workflow
Document the settings that work for your most common media and laminate combinations. Record roller pressure, heat-assist temperature, speed, cure time, and any special handling requirements. This is especially valuable for shops producing recurring vehicle decals, retail signage, construction graphics, and mounted displays.
A professional wide-format laminator should fit the width, volume, and applications your shop produces. A 55-inch machine may suit standard sign work, while a 64-inch laminator provides needed capacity for vehicle wrap media and wider graphics. Features such as heat assist, take-up systems, adjustable pressure, and stable feed tables can improve consistency and reduce labor on long runs.
The goal is not simply to cover a print with film. It is to deliver a finished graphic that stays flat, looks clean, resists wear, and performs as promised after installation. Treat lamination as a controlled production process, and every finished panel becomes a stronger reflection of your shop's capabilities.
