A vinyl cutter that is even slightly out of calibration will tell on itself fast - corners lift, circles look uneven, long runs drift, and weeding turns into wasted labor. If you are looking for how to calibrate vinyl cutter performance for professional output, the goal is not just making one test cut look acceptable. The goal is repeatable accuracy across the jobs that make your shop money.
For sign shops, apparel decorators, wrap installers, and print providers, calibration is part of uptime. A cutter that tracks correctly and cuts at the right depth reduces scrap, protects cutting strips, and keeps production moving. The process is straightforward, but it has to be done in the right order.
How to calibrate vinyl cutter without chasing the wrong problem
Most calibration issues are not software problems first. They usually start with setup, wear parts, or mismatched settings. Before changing offsets or force values, make sure the machine is mechanically sound.
Start with the blade holder. Remove any debris, adhesive dust, or media fragments. A dirty holder can stop the blade from rotating freely, which creates dragged corners and inconsistent detail. Then inspect the blade itself. If it is chipped, dull, or packed with residue, calibration will only mask the real issue for a short time.
Next, check the pinch rollers and grit rollers. If the media is not being fed evenly, you can spend an hour adjusting software values and still get poor tracking over longer cuts. Load the vinyl straight, place pinch rollers in approved positions, and verify even pressure across the width of the material.
Also confirm your cutting strip condition. A worn or grooved strip can affect cut consistency, especially on small text and repeated contour work. If the strip is damaged, replace it before fine-tuning the cutter.
Start with blade depth, not force
This is where many operators lose time. They try to compensate for too much blade exposure by reducing force, or they push force too high because the blade is barely exposed. Neither approach produces stable results.
Blade depth should be minimal - just enough to cut the face film cleanly without driving deeply into the backing paper. A good rule is that the exposed blade should look smaller than most new operators expect. If it looks aggressive, it probably is.
An easy check is to drag the blade by hand across a scrap piece of vinyl outside the machine. You should be able to cut the vinyl layer cleanly while only lightly marking or barely scoring the liner. If the liner is deeply cut, retract the blade. If the vinyl does not separate cleanly, extend it slightly.
This matters because force should fine-tune pressure, not correct a blade setup error. Too much blade exposure causes corner hooks, tearing, and premature wear. It can also damage the cutting strip and reduce accuracy over time.
Setting the right cutting force

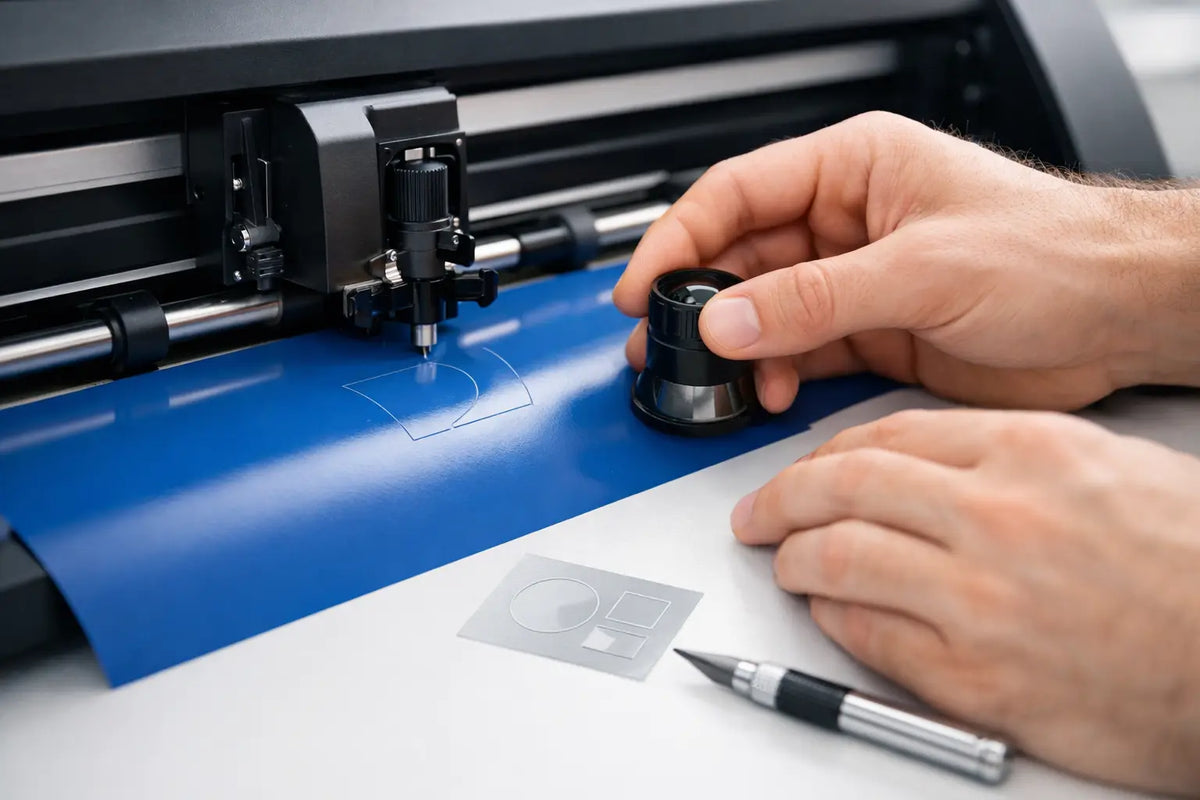

Once blade depth is correct, use the machine's built-in test cut or your software test pattern. Increase force gradually until the vinyl weeds easily and the backing stays mostly intact. The right number depends on the media.
Standard calendared vinyl usually needs less force than thicker reflective film, flock, glitter heat transfer, sandblast mask, or laminated print-and-cut media. There is no single force setting that works across every material in production. Shops running multiple substrates should keep a material-based setting record so operators can move faster between jobs.
If you are seeing cut-through on the liner, lower force first. If details are not separating during weeding, increase force slightly. Small changes matter. Large jumps usually create new problems instead of solving the current one.
Calibrate blade offset for sharp corners and small text
Blade offset controls how the cutter compensates for the blade tip trailing behind the center of rotation. When offset is wrong, shapes that should be crisp start looking rounded, hooked, or slightly overcut at the corners.
This is one of the most important steps in how to calibrate vinyl cutter accuracy for decals, labels, and fine lettering. Use a simple square or triangle test pattern and inspect the corners closely after weeding.
If the corners are rounded and not meeting cleanly, the offset may be too low. If the blade cuts past the corners or leaves small hooks, the offset may be too high. Adjust in small increments and repeat the test until shapes close cleanly without visible tails.
Offset values vary by blade type and cutter model. A 45-degree blade and a 60-degree blade may require different values, even on the same machine. That is why copying settings from another shop or another device is not always reliable.
Overcut and why it helps on some jobs
Some cutters and RIP workflows also allow overcut settings. Overcut adds a slight extension at the start or end point of the cut path to help ensure complete separation, especially on thicker media or detailed jobs.
Used correctly, overcut improves weeding on small graphics and dense production layouts. Used too aggressively, it can leave visible marks or weaken delicate areas. If your corners and closures are almost correct but not fully releasing, a minor overcut adjustment may help after offset is dialed in.
Check tracking before long production runs
A cutter can pass a small test cut and still fail on a 6-foot graphic. Tracking calibration is what keeps long panels straight and repeatable.
Load a wider section of material and run a longer test feed. Watch for side-to-side drift as the vinyl advances and returns. If the media walks left or right, confirm that the pinch rollers are aligned, the vinyl roll is feeding with minimal resistance, and the machine is on a level, stable stand.
On some models, skew during long runs is partly operational rather than electronic. Heavy rolls with uneven drag can affect feed consistency. So can loading media with the edge already out of square. Trim a clean leading edge before loading when needed.
If contour cutting is part of your workflow, tracking problems become even more obvious. Registration marks may read correctly at the start of the job, then miss later in the run as the media drifts. That is why tracking should be tested on actual production lengths, not just short samples.
How to calibrate vinyl cutter contour cutting
Print-and-cut workflows add another layer of calibration because the cutter has to align to printed graphics, not just follow its own motion accurately. If contour cuts are offset from the print, check the basics first: media loading, print scaling, correct registration mark settings, and sensor cleanliness.
Then confirm that the software and cutter are using the same origin point and page size assumptions. A mismatch between artwork setup and machine read area can create errors that look like mechanical drift.
Some systems also require X and Y axis calibration for print compensation. If your cuts are consistently shifted in one direction, or if the error increases as the cutter moves farther across the sheet, use the model-specific contour calibration routine. Follow the manufacturer's sequence closely. Skipping steps or measuring loosely can introduce more error than you remove.
For shops producing decals, labels, and laminated graphics, it is worth rechecking contour calibration whenever you change media thickness significantly. Laminate, print heat, and material stretch can all influence final accuracy.
Software settings matter, but only after the machine is stable
Cut speed, acceleration, and tool selection all influence output quality. If small text is lifting or detailed shapes are distorting, reducing speed often helps more than increasing force. Fast cutting can be productive on large, simple graphics, but intricate work usually benefits from a slower, more controlled pass.
Make sure the selected blade type in your workflow matches the physical blade installed. Also review any quality modes, tangential emulation settings, or condition presets available on your cutter. Professional machines from brands like Graphtec and Summa often provide multiple preset conditions because the correct setup for cast wrap film is not the same as the best setup for thick heat transfer material.
This is where experienced operators gain consistency. They do not rely on one universal profile. They build repeatable presets around the media and application.
When recalibration is actually maintenance
If you keep recalibrating and the results do not hold, the issue may be wear rather than settings. Blade holders wear out. Pinch rollers harden. Cutting strips groove. Sensors collect dust. Even static can interfere with some materials and environments.
A cutter that needs constant force changes, inconsistent offsets, or repeated tracking correction should be inspected as a machine, not just treated as a software problem. In production environments, that approach saves more time than endless test cuts.
For shops running revenue-critical equipment, it also makes sense to keep blades, strips, and key wear parts on hand. Downtime gets expensive quickly when the cutter is a bottleneck behind printing, laminating, or finishing.
Build a calibration routine your shop can repeat
The best calibration process is one your team can perform consistently. Set blade depth first. Then adjust force. Then fine-tune offset and overcut. After that, verify tracking and contour accuracy on real job lengths, not just small samples.
Document the final settings by material type, blade angle, and application. A simple internal chart for standard sign vinyl, cast wrap film, reflective media, and heat transfer can reduce setup time and operator guesswork. If your shop runs mixed equipment, keeping those standards organized becomes even more valuable.
Wide Image Solutions works with production environments where cutters are expected to perform every day, not just pass a bench test. That is the right standard to use in your own calibration process.
A properly calibrated cutter should disappear into the workflow. You load media, send the file, weed the job, and move on to the next order without second-guessing the machine.
