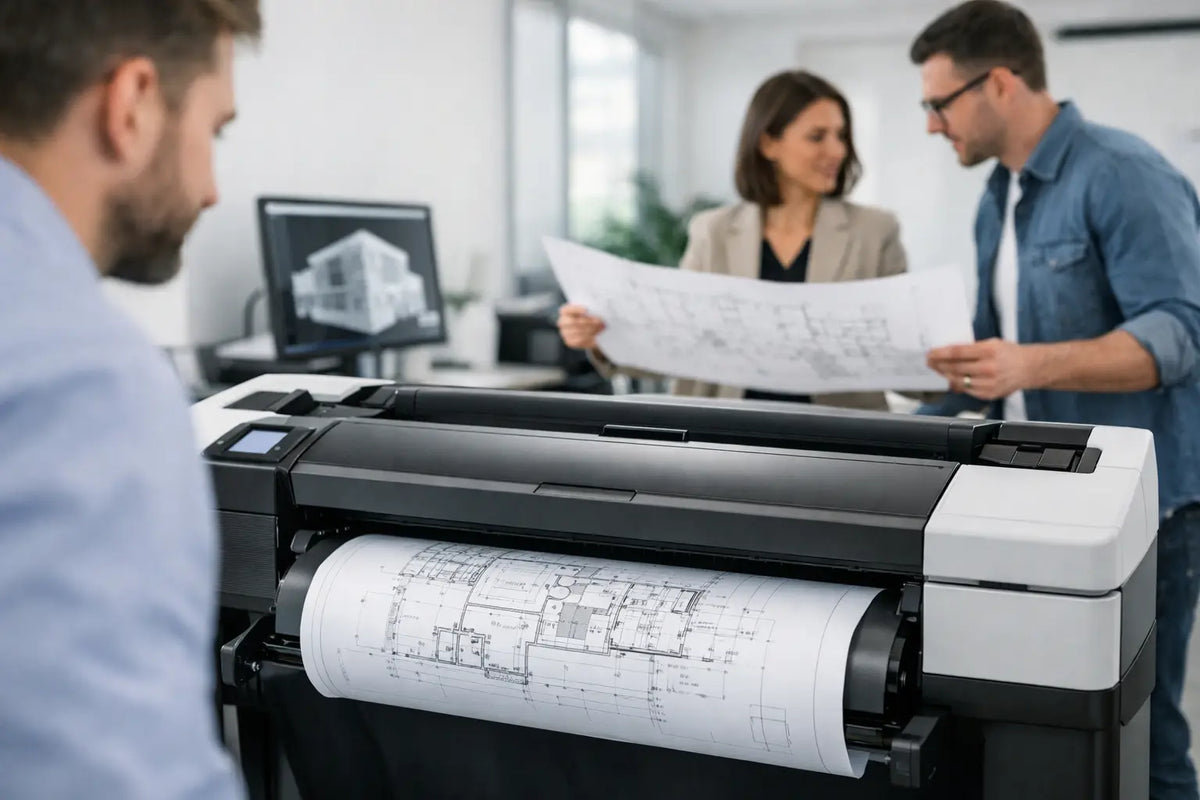

A delayed drawing set can hold up an entire bid, permit package, or construction meeting. That is why choosing the best plotter for CAD drawings is less about finding the lowest machine price and more about building a dependable document-production workflow. The right CAD plotter delivers crisp linework, readable fine text, predictable color, and the speed to keep architectural, engineering, and construction teams moving.
For most professional environments, a dedicated large-format inkjet plotter from HP or Canon is the practical starting point. The better choice depends on how wide you print, how many sheets move through the machine each week, whether you need color presentation output, and how much downtime your operation can tolerate.
What a CAD Plotter Must Do Well
CAD output places different demands on equipment than posters, wraps, or photographic prints. A technical drawing may look simple, but it exposes every weakness in line accuracy, paper handling, and driver compatibility. Fine gray screening, small annotations, hatch patterns, and layered color lines all need to reproduce cleanly from edge to edge.
Start with line quality. Look for a plotter designed to produce sharp black text and precise vector lines on plain bond paper. High resolution matters, but it is not the only specification. Consistent ink placement, a dependable printhead, and a driver that correctly interprets PDF, TIFF, HP-GL/2, and common CAD workflows have a bigger impact on day-to-day results.
Speed is the next operational concern. Manufacturers quote fast modes that can be useful for internal review sets, but production speed on a readable D-size or E-size drawing is what matters. If several users send files at once, printer memory, processing capability, and efficient file handling also become important. A plotter that prints quickly but stalls on complex PDFs will still create a bottleneck.
Paper handling separates an office convenience machine from a productive technical plotter. Roll-fed printing is essential for repeated large-format work. A built-in cutter, accurate roll loading, and an output basket that keeps drawings organized reduce wasted time between sets. For teams that regularly print both 24-inch and 36-inch documents, dual-roll capability can eliminate frequent media changes and help operators keep separate paper types loaded.
Best Plotter for CAD Drawings: Match Width to Work
Print width should follow the document sizes your team actually produces, not the largest size you might print once a year. A 24-inch plotter is often a strong fit for small architecture offices, engineers, consultants, and contractors producing A1, D-size, and smaller technical documents. It takes up less floor space, costs less to operate, and can be highly productive when 24-inch rolls cover the bulk of the workload.
A 36-inch plotter is the standard choice for many AEC and reprographic environments. It supports common 36-inch plan sizes and gives operators more flexibility for larger site plans, presentation boards, and oversized markups. For a shop serving multiple outside clients, 36 inches is often the most commercially useful width because it handles the formats customers request most often.
A 42-inch or wider unit makes sense when E-size output, maps, GIS graphics, and large presentation work are regular revenue streams. It is not automatically the best investment for every CAD department. Wider equipment requires more floor space, wider media, and a clear reason to carry the added capacity. Buy width for recurring demand, not occasional curiosity.
Choose the Right Production Class
Entry-level technical plotters work well for light internal printing. They are a sensible option when a small office needs a few drawings each week, color markups, and occasional presentation boards. Their advantages are compact footprints, lower acquisition costs, and straightforward operation.
Mid-volume CAD plotters are built for teams that print daily and cannot wait behind a single roll of paper. These units usually provide faster output, larger ink systems, better network integration, and more capable media management. They are the practical sweet spot for architecture firms, engineering departments, construction offices, and print providers with steady plan-set demand.
Production-class plotters are designed for high-volume reprographics, centralized print rooms, and businesses selling plans as a service. Features such as dual rolls, high-capacity ink, stackers, advanced security controls, and faster processing can justify the investment when labor savings and turnaround time matter. If a machine supports several users and runs throughout the day, the operating cost per drawing becomes more significant than the initial purchase price.
Ink Systems and Running Costs Matter More Than You Think
For standard CAD work, pigment black ink is especially valuable. It produces dense, durable black lines on plain paper and helps technical documents remain readable after handling on job sites. Color ink performance still matters for discipline overlays, safety callouts, utility maps, and presentation drawings, but a CAD plotter does not need to be selected like a photo printer.
Compare cartridge capacity before comparing only cartridge price. Higher-capacity ink options can lower interruption rates and reduce the effective cost of output in active environments. Also consider whether the plotter uses separate color inks, how easily cartridges can be changed during operation, and whether printhead maintenance is operator-friendly.
Paper is another cost center. Bond paper is economical for everyday drawings, while heavier bond, coated paper, or presentation media may be needed for client-facing sets. A plotter that handles your everyday roll media reliably is more valuable than one with impressive specialty-media claims that your team will rarely use.
Software, File Types, and Network Workflow
The best hardware can still frustrate a team if its workflow is poorly configured. Before buying, confirm compatibility with the software and file types your users send most often. Many CAD environments print from AutoCAD, Revit, Bluebeam, ArcGIS, Adobe Acrobat, and browser-based project platforms. PDF handling is particularly important because PDFs are the common handoff format across contractors, consultants, and clients.
A useful CAD plotter should be easy to share across a network and simple to monitor remotely. Job queues, ink alerts, media status, and user controls can prevent a minor supply issue from becoming a deadline problem. For firms handling sensitive plans, ask about security functions such as user authentication, encrypted communication, and secure storage behavior.
Driver setup deserves attention during installation. Standardized page sizes, saved presets, correct scaling, and line-weight settings help prevent expensive reprints. A good supplier can support more than the sale by helping establish a workflow that produces accurate output from the first set onward.
New vs. Refurbished CAD Plotters
A new plotter gives you current features, manufacturer coverage, and a clean starting point for a long equipment cycle. It is often the right fit when your team needs the newest security standards, specific software compatibility, or a high-volume production configuration.
Refurbished professional equipment can be a strong value for cost-conscious firms, especially when it has been inspected, tested, and backed by a meaningful warranty. A commercial-grade refurbished plotter may offer more production capacity than a new entry-level model at a similar budget. The trade-off is that buyers should verify condition, included accessories, software support, available parts, and service coverage before making a decision.
For either path, assess the full ownership package: delivery, installation needs, ink availability, media sourcing, technical support, warranty terms, financing, and trade-in options. Equipment uptime is part of the purchase decision, not an afterthought.
A Practical Buying Decision
If your office prints occasional 24-inch plan sets, choose a compact technical plotter with reliable plain-paper output and easy network access. If you print daily at 36 inches, prioritize speed, larger ink capacity, and dependable roll handling. If you run a reprographic service or a busy centralized print room, invest in a production model with dual rolls, strong file processing, and finishing options that reduce operator touches.
Do not overbuy photo-print features when your revenue depends on construction documents. At the same time, do not buy the least expensive unit if your staff will spend every morning loading media, waiting for files, and reprinting mis-scaled drawings. The best plotter is the one that fits the volume, width, applications, and support requirements of your actual operation.
Wide Image Solutions can help buyers evaluate those requirements across new and refurbished professional equipment, supplies, and workflow support. A well-matched CAD plotter should become the quiet, reliable part of your production floor that keeps every plan set ready when the next deadline arrives.
